This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

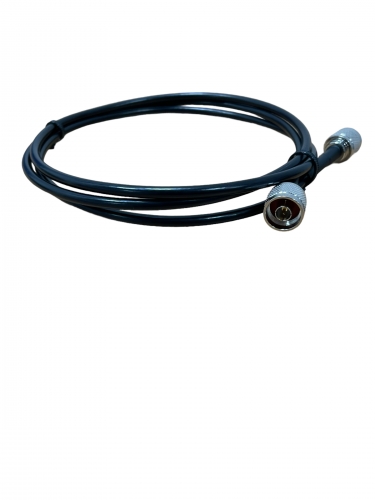

This 6 Foot low loss cable has an N-Male connector on both sides. It is typically used to connect an antenna with an N/Female connector to a router or amplifier with an SMA/Female connector.
Specifications:
- Cable length: 6 Foot
- Connectors: N/Male
- Cable diameter: 1/4"
- Impedance: 50ohms
Signal Loss:
- The amount of signal attenuation you'll see depends on which frequency you're using.
- This cable averages approximately 0.5dB of signal loss.
- The attenuation for each frequency is below:
- 700mhz: 0.3dB
- 800mhz: 0.4dB
- 1700mhz: 0.6dB
- 1900mhz: 0.6dB
- 2100mhz: 0.6dB
- 2400mhz: 0.7dB
- 2500mhz: 0.7dB
- Approximately .5dbm is lost at each connection between 2 cables
To prevent excessive signal loss, this cable should NOT be daisy-chained with other cables! It is always better to use one longer piece of cable than to screw two shorter cables together.
