MobileMark Global 9-in-1 MaxFin MIMO 5G LTE/WIFI 6E/GNSS (9 cables) - SMA

Call for Availability

Item Number: 13565
Model: MXG944-CJC-B-180
Quantity:

Price:

$740.80

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

MXG944 SURFACE MOUNT MIMO ANTENNA

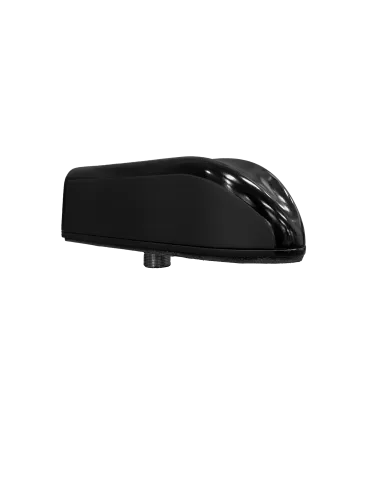

The MXG944 Antenna (4x 5G/LTE, 4x WiFi 6E/Bluetooth, 1x GNSS) provides complete coverage over all Cellular and WiFi 6E Frequencies, along with operation over GNSS Frequencies. GNSS operates on GPS, Galileo, Glonass, QZSS and Beidou at 1561, 1575, & 1602 MHz. Multiple WiFi 6E and Cellular elements provide MIMO coverage for both. This array of elements allows for a highly versatile antenna, while still managing to mantain an aerodynamic, sleek, and compact form, with all 9 elements being contained within the narrow profile of the MX series radomes. This Series is ideal for Public Safety and Emergency vehicles such as the Ford Police Interceptor.

Electrical Specifications

Frequency & Gain

5G/LTE Cables 1 - 4

617-960 MHz, 3 dBi Peak 1710-7200 MHz, 5 dBi Peak

WiFi 6E Cables 5 - 8

2.4-2.5 GHz, 5 dBi Peak 4.9-7.2 GHz, 5 dBi Peak

GNSS Cable 9

1561, 1575 &1602 MHz, 5 dBi Peak

VSWR

5G/LTE - < 2.5:1 Over Range WiFi 6E - < 2:1 Over Range

Impedance

50 Ohm Nominal

Power Rating

10 Watts

GNSS

Amplifier Gain & Bias Voltage

26 dB, 5 dBi 3/5 VDC

Noise Figure

2.0 dB max, 1.7 dB typical

Current

20 mA max, 10 mA typical

Mechanical Specifications

Radome Material & Color

ASA UV-Inhibitive Plastic, Available in Black or White

Radome Dimension

2.50” Wide (63.5 mm) x 9.00” Length (228 mm) x 2.60” Height (66 mm)

Standard Connectors

5x SMA Plug (Male) for 5G/LTE and GNSS 4x Rev Pol SMA Plug (Male) for WiFi 6E SMA Jack (Female) for All Jumper Cables

1 Foot (0.30m) Cables 14 Feet (4.27m) Jumper Cables

LMR-100 Cables for 5G/LTE and WiFi 6E RG-174 Cable for GNSS

Operating Temperature

-40° to +80° C

Mounting

Stud Mount - 7/8” Dia. (22.22 mm) feed through. 3/4” lg. (19 mm) thread for up to 1/2” (12.7 mm) surface

Dust & Water Ingress

IP67 (When Properly Mounted)

Shock and Vibration

IEEE1478, EN61373, MIL-810G, TIA 329.2-C

RoHS Compliant

Yes
