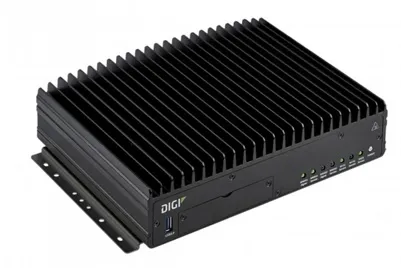

Digi TX64 Primary Responder dual cellular 5G / LTE-Advanced Pro Cat 20, dual Wi-Fi 6, UDR, global, FirstNet Trusted

Call for Availability

Item Number: 13592
Model: TX64-A161-PR
Quantity:
Have a large deployment?
Request a Quote

Price:

$4,099.00

Manage Your Network Your Way Remote device management: network-wide updates, data insights and control. Digi Remote Manager delivers centralized visibility and automates processes at your command, with actionable 24/7 remote monitoring.
Digi RM Subscriptions - details
Cellular antennas are NOT included - two antennas are required for the embedded modem.
Select Antennas (required) - details
This device only includes the hardwire DC power supply. If you need an AC or vehicle power supply, you can add one here.
Add a Power Adapter (optional) - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

5G railway-rated cellular router customized for both on-board heavy and light rail railways and metros

Ideal for challenging rail transportation environments, the Digi TX64 5G Rail router offers 5G/4G/3G cellular connectivity with true enterprise class routing, security, firewall and integrated VPN. It offers a flexible interface design with an integrated Wi-Fi 6 access point and client, USB, serial, inertial-guided GNSS, Bluetooth® and 4-port Gigabit Ethernet switch, as well as a variety of configuration options. 5G is a game-changer for the rail industry. Until now, the speeds needed to securely move massive amounts of data quickly were reserved for wired networks. But today, with the rapid expansion of 5G (with LTE fallback), this fully rail-certified device delivers 5G performance, either as a primary or failover connection.

Customers and suppliers alike will begin to expect 5G connectivity whether it is for other on-board equipment applications or the information being provided to riders. Paving the way for compatibility with FRMCS standards, this first industry-standard 5G rail-rated device prepares you for the future today. Digi TX64 5G Rail is equipped with precision train positioning via an Untethered Dead Reckoning (UDR) module that reports location data more accurately by taking into account acceleration, speed and angular rate. Regardless of issues with traditional GNSS in certain weather conditions or tunnels, UDR allows you to monitor the train’s exact positioning and speed, optimize each train’s location and prevent collisions without the use of additional onboard systems.

Digi TX64 5G Rail features FirstNet Trusted support to meet the critical demands of first responders for emergency communications. Digi TX64 5G Rail also meets the U.S. government cybersecurity FIPS 140-2 standard and supports the Digi TrustFence® security framework to ensure it is secure on day one and stays secure throughout its life. Easily deploy and centrally manage Digi TX64 5G Rail with Digi Remote Manager® and available value-added services.

Key features, benefits and applications

  • High-speed 5G NR cellular radio with 4G LTE-Advanced Pro Cat 20 and 3G fallback
  • FirstNet Trusted for primary responders communication
  • Meets U.S. government FIPS 140-2 cybersecurity standard
  • WR44 RR drop-in replacement and upgrade
  • Wired Gigabit M12 Ethernet (4-port) for onboard systems
  • Dual concurrent Wi-Fi 6 2 x 2 backhaul, with passenger Wi-Fi over Wi-Fi 6 2 x 2 access point
  • Wired Gigabit M12 Ethernet (4-port) for onboard systems
  • Cryptographic co-processor with secure key generation/storage
  • Digi Remote Manager cloud-native platform to easily deploy, mass configure and manage devices
  • Value-added services include Digi Containers, Digi WAN Bonding 5G/LTE WAN aggregation with immediate failover and Digi Mobile VPN for secure, persistent mobile connectivity.

What's in the box:

  • Digi TX64 Primary Responder — dual cellular 5G / LTE-Advanced Pro Cat 20, dual Wi-Fi, UDR, global, FirstNet Trusted™

SPECIFICATIONS - Digi TX64 Primary Responder

WIRELESS INTERFACES

CELLULAR / WWAN

Cellular network

  • Dual modules with 5G and LTE-Advanced Pro Cat 20 global
  • 5G NR Sub-6 bands: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77, n78, n79, C-band
  • 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48 CBRS, B66, B71
  • 3G bands: B1, B2, B3, B4, B5, B6, B8, B9, B19
  • Transfer rate: 1 x Gbps throughput

CONNECTORS

4) 50 Ω TNC (center pin: female)

SIM SLOTS

(2) mini-SIM (2FF)

SIM SECURITY

SIM slot cover plate included

WI-FI

TECHNOLOGY

  • dual Wi-Fi 6 (802.11ax) modules
  • Private backhaul: Wi-Fi 6 (802.11ax), 5 GHz, 4 x 4 MIMO, up to 128 clients
  • Public Wi-Fi: Wi-Fi 6 (802.11ax), 2.4 / 5 GHz, 2 x 2 MIMO, up to 128 clients

HOTSPOT

Captive portal with customizable splash page

AUTHENTICATION

Basic terms and conditions acceptance, enterprise RADIUS, shared password, HotSpotSystem

THIRD-PARTY SERVICES

Content filtering, embedded advertising

MODES

Up to 8 access points and 1 client per Wi-Fi module (16 + 2 total)

CONNECTORS

Private backhaul: (2) 50 Ω RP-TNC (center pin: male) Public Wi-Fi: (2) 50 Ω RP-TNC (center pin: male)

GNSS

TECHNOLOGY

GPS, Galileo, BeiDou and GLONASS with Untethered Dead Reckoning (UDR), multiple geofence support

SENSITIVITY

Tracking and navigation: −160 dBm

PROTOCOL

NMEA 0183 4.0, TAIP

CONNECTOR

(1) 50 Ω RP-TNC (center pin: male); +3.3 VDC active antenna drive

WIRED INTERFACES

ETHERNET

PORTS / CONNECTOR

(4) M12 X-CODE / IEEE 802.3; 10/100/1000 Base-T

SERIAL

PORTS / CONNECTOR

(1) RS-232; DB-9 male

USB

PORTS / CONNECTOR

(2) USB 3.0 Type A

MEMORY

RAM / FLASH

2 GB / 8 GB

PHYSICAL

DIMENSIONS

260 mm x 196 mm x 51 mm (10.2 in x 7.8 in x 2 in)

WEIGHT

3.9 kg (8.6 lbs)

STATUS LEDS

Power, WWAN (signal, service) per module, Wi-Fi service (per module), GNSS service, LAN (link, activity)

ENCLOSURE / RATING

Aluminum alloy / IP66

POWER REQUIREMENTS

Power connector

3-pin terminal block with ignition sense

ENVIRONMENTAL

MOUNTING

Slotted mounting flanges, grounding stud

OPERATING TEMPERATURE

−40 °C to 74 °C (−40 °F to 165.2 °F)

STORAGE TEMPERATURE

−40 °C to 85 °C (−40 °F to 185 °F)

RELATIVE HUMIDITY

0% to 95% (non-condensing) at 25 °C (77 °F)

APPROVALS

CELLULAR

PTCRB, AT&T, FirstNet Trusted, T-Mobile, Verizon;

SHOCK / VIBRATION

MIL-STD-810G: vibration (Method 414.6C-10, Category 11), shock (Method 516.6, Procedure I)

EMISSIONS / IMMUNITY

FCC Part 15 Class B, EN 50121-3-2, CISPR 16-2-3

ENVIRONMENTAL / INDUSTRIAL

EN 50155, EN 45545-2, IEC 60068-2-1/2-2/2-30

 *Accessories: not included with this product
