Peplink Mobility 22G 5-in-1 cellular and Wi-Fi antenna system with GPS receiver - ANT-MB-22G-Q-W-1
  • Peplink Mobility 22G 5-in-1 cellular and Wi-Fi antenna system with GPS receiver - Mobility 22G Mounting bracket

Peplink Mobility 22G 5-in-1 cellular and Wi-Fi antenna system with GPS receiver

31 Support Docs
Call for Availability
Item Number: 14166
Model: ANT-MB-22G-Q-W-1
Quantity:
Have a large deployment?
Request a Quote

Price:

$249.00

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Mobility 22G

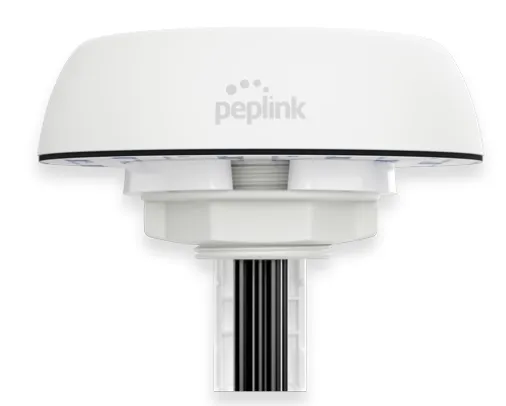

The Peplink Mobility 22G is a 5 in 1 antenna built for mobile applications. It supports 2x2 cellular MIMO for high bandwidth and solid reliability, dual-band (2.4GHz & 5GHz) Wi-Fi and GPS. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS antenna is equipped with high gain LNA, making it ideal for location tracking. The Mobility 22G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options.

Features

  • 5-in-1 cellular and Wi-Fi antenna system with GPS receiver
  • 2x LTE/5G, 2x Wi-Fi, 1x GPS
  • Frequency range: 600-6000MHz
  • IP68 Rating
  • Cellular and GPS connector type: QMA male
  • Wi-Fi connector type: QMA male
  • Color: White
  • Cable length: 1 ft / 0.3m "

Package contents

Antenna Mobility 22G

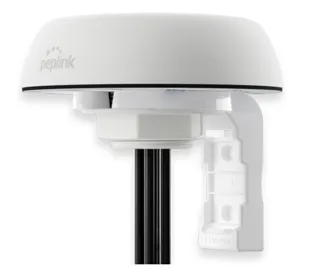

Mounting Mounting bracket Wall/pole mount Double sided 3M adhesive pad Diameter: 5.08” / 129mm Thickness: 0.08"" / 2mm

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 2
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector QMA Male
GPS Connector QMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Multi
Antenna Color White
Width (in) 5.12
Height (in) 1.42
Weight (lb) 2.11
Maximum Gain 7.4
Impedance Ω (Input/Output) 50
Cable Length (in) 12
Cable Type CFD200
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material UV stable PC and ABS
VSWR (Voltage Standing Wave Radio) <2.5
