3-Year NetCloud Small Branch Essentials Plan and E100 router with WiFi (5GC modem), North America

70 Support Docs
Call for Availability
Item Number: 14496
Model: BK03-01005GC-GN
Quantity:

Price:

$1,749.00

Cradlepoint Offers an optional Battery Pack for Cradlepoint E100 Router. Estimated Run Time for E100 Router: Single Battery: Up to 8 hours Dual Batteries: Up to 16 hours.
Optional Battery Pack: - details
NetCloud Small Branch Advanced Plan Routers includes NetCloud Manager Prime. Upgrading to the Advanced package adds the NetCloud Manager Enterprise features, including Traffic Analytics and CP Secure Web Filter.
Upgrade to NetCloud Advanced - details
Bundle & Save Compare All...
$354 $318.60
$541 $467.80
$404 $347.36
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

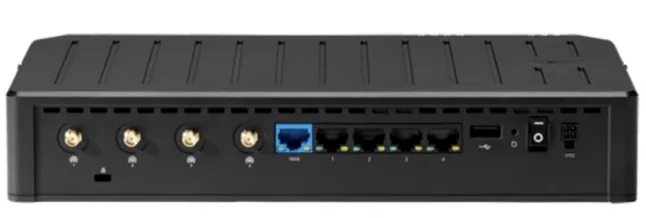

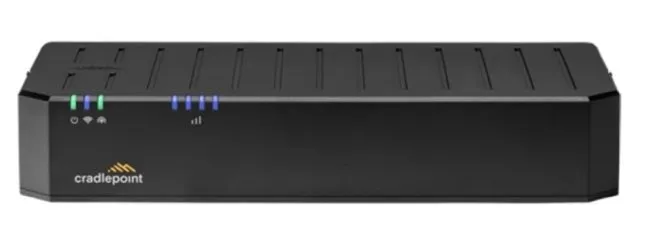

The E100 Series Enterprise Router provides small footprint locations with the same networking, optimization, security, and ease of management that supports larger locations. The all-in-one endpoint includes full-featured routing, switching, and Wi-Fi, making it easy to connect and maintain connectivity to the Internet for supporting crucial business applications. Additional capabilities for Zero Trust security and SD-WAN are available through NetCloud Exchange to provide confidence in connecting and securing peripheral devices such as IoT and point of sale (PoS).  The embedded 5G or LTE modem means that reliable, connectivity is always available from day one without waiting for a wired connection.

BENEFITS

  • Provide all-in-one routing, switching, and Wi-Fi for small offices
  • Define policies through centralized, cloud-based management for easy deployment at scale
  • Integrate into existing networks with standards-based dynamic routing, traffic-shaping, and NCX SD-WAN
  • Establish encrypted tunnels with NCX Secure Connect and WAN Edge Security VPN tunnel support
  • Implement zero-touch deployment with preconfigured router and pre-inserted SIM to speed installation
  • Use optional battery for uninterrupted power

Hardware specs

Cloud Management

Yes

Wireless Connectivity

5G NR & Cat 19 LTE or Cat 7 LTE

5G Status

5G embedded

Form Factor

Industrial Plastic

Ethernet Ports

5 x GbE

USB Ports

1

Serial Ports

0

Dual-Modem Support

No

Network Operator Standards

PTCRB (U.S. & Canada)

Network Operator Certifications

AT&T, T-Mobile, Verizon

Throughput

850 Mbps (Firewall)

VPN Tunnel Count

20

Wi-Fi

Dual-band, dual-concurrent; 802.11ac (Wi-Fi 5)

GNSS/GPS

Passive

PoE

No

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Rack Mountable

No

Private Cellular Network

Yes — CBRS, 4G LTE, 5G

Battery Option

Yes
e100-seriesenterprise-router-2024-03-13(14496).pdf



Specifications:

No. of Cellular Connectors 4
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 4
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 2
Ports Configurable as LAN/WAN Yes
USB Port WAN
WAN Throughput Speed 850 mbps
SIM Card Size 4FF
Length (in) 5.3
Width (in) 10.6
Height (in) 1.9
Weight (lb) 1.13
Minimum Temperature (F) 32
Maximum Temperature (F) 104
Material Industrial Plastic
Antennas Included Yes
Modem Expansion Slot Yes
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 5
Cloud Management Included Yes
Power Input Power Supply, 12 VDC, 2X2 1.5 meters
Bluetooth No
Bonding Support No
IP Passthrough Yes
