1-yr E-Rate Bus WiFi: NetCloud Mobile Essentials Plan, Mobile Fleet Plan and IBR1700 router with WiFi (1200Mbps modem) - MAX1-1700-120B-XE

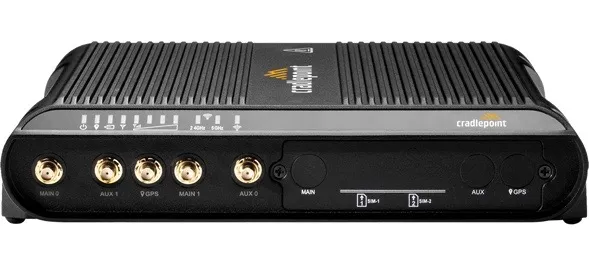

1-yr E-Rate Bus WiFi: NetCloud Mobile Essentials Plan, Mobile Fleet Plan and IBR1700 router with WiFi (1200Mbps modem)

Call for Availability

Item Number: 14525
Model: MAX1-1700-120B-XE
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,499.00

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The purpose-built router

Cradlepoint endpoints provide industry-leading, Gigabit-Class LTE connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold with a subscription to NetCloud Service for Mobile which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.

BENEFITS

  • World’s first mobile router with Gigabit-speeds for LTE, Wi-Fi, and Ethernet delivering best-in-class enterprise grade performance
  • Field-upgradable with second modem for continuous connectivity (with second wireless carrier)
  • Precision GPS with dead-reckoning enables advanced location-based applications
  • OBD-II support with accessory cable for vehicle health and diagnostics reporting
  • Extensibility with GPIOs, NetCloud SDK and API for customizable solutions
  • Unified edge security including multi-zone firewalls, IDS/IPS, and Internet security
  • FIPS 140-2 Inside versions available
  • Certified on multiple public safety networks
  • 5G ready and able to act as controller for external 5G adapters

Hardware Specs

Category

Mobile

Cloud Management

Yes

Wireless Connectivity

Gigabit-Class LTE

5G Status

5G-enabled with Cradlepoint 5G Adapter

Form Factor

Ruggedized Metal

Ethernet Ports

5 GbE (LAN/WAN switchable)

USB Ports

1

Serial Ports

1

Dual-Modem Support

Yes

Network Operator Standards

PTCRB (U.S.), GCF (global)

Network Operator Certifications

AT&T, Verizon

Regions

North America, Latin America, Europe, Africa & Middle East, Asia-Pacific

Public Safety Networks

ESN, FirstNet Trusted, Verizon Frontline

Throughput

940 Mbps (Firewall)

VPN Tunnel Count

10

Wi-Fi

Dual-band, tri-radio Wi-Fi; 802.11ac Wave 2 (Wi-Fi 5)

GNSS/GPS

Active

PoE

No

Operating Temperature

-30 °C to 70 °C (-22 °F to 158 °F)

Rack Mountable

Yes

Private Cellular Network

Yes — CBRS, 4G LTE

Latest Blog Posts About This Product





Specifications:

No. of Cellular Connectors 4
No. of WiFi Connectors 6
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 4
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port WAN
WAN Throughput Speed 940 mbps
SIM Card Size 2FF
Length (in) 8.8
Width (in) 7.5
Height (in) 1.7
Weight (lb) 3.7
Minimum Temperature (F) -22
Maximum Temperature (F) 158
Material Ruggedized Metal
Antennas Included No
Modem Expansion Slot Yes
Modem Replaceable No
FIPS Certified Yes
WiFi Support WiFi 5
Cloud Management Included Yes
Power Input 9-36 VDC steady state input (vehicle installations with 9-24 VDC requires 3A inline fuse, >24 VDC re
Bluetooth No
Bonding Support No
IP Passthrough Yes
