Poynting LPDA-92 Wideband Log-Periodic Dipole Array Antenna - MiMO setup with Bracket Mount (BRKT-33) (N Female; 0.5m cable) - A-LPDA-0092-03-LTE

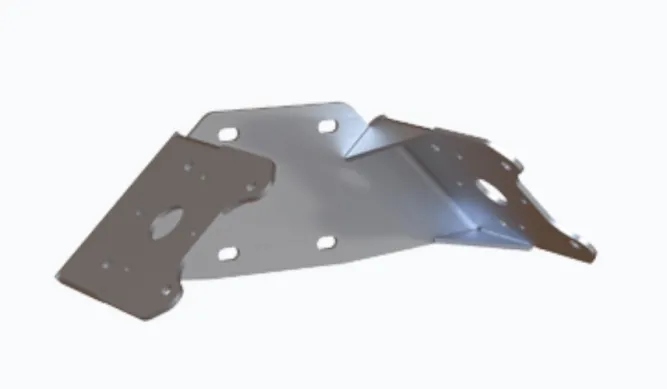

  • Poynting LPDA-92 Wideband Log-Periodic Dipole Array Antenna - MiMO setup with Bracket Mount (BRKT-33) (N Female; 0.5m cable) - BRKT-33 (Included Bracket Mount)

Poynting LPDA-92 Wideband Log-Periodic Dipole Array Antenna - MiMO setup with Bracket Mount (BRKT-33) (N Female; 0.5m cable)

1 Support Docs
Call for Availability
Item Number: 14665
Model: A-LPDA-0092-03-LTE
Quantity:
Have a large deployment?
Request a Quote

Price:

$330.03

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

LPDA-92 The LPDA Enclosure

This high-gain, wideband, directional antenna covers all international cellular, mobile and wireless data bands including GSM 900/ GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and 2.3- 2.7GHz licensed and unlicensed data bands. Its configuration is suitable for various wireless communications systems. This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures. A firm favourite, in any area where operators are having signal challenges. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS).

Key Features

  • SISO antennas for MiMO setup with 2x 0.5m HDF-195 cable and N Female connectors
  • Futureproof wideband LTE and Wi-Fi antenna covering 698 – 3800 MHz
  • Gain: 11 dBi
  • Compatible with 2G, 3G, 4G and 5G technologies
  • Covers the CBRS Band from 3.2 GHz to 3.8 GHz
  • Improves mobile network subscriber’s user experience
  • Weather and vandal resistant
  • Used in extreme weather environment
  • Includes 2 x A-LPDA-0092 & A-BRKT-033

Latest Blog Posts About This Product


Technical-Specification-A-HELI-0040-V1-01 (14665).pdf
Technical-Specification-A-LPDA-0092-V1-2(14665).pdf
Technical-Specification-A-LPDA-0092-V1-2(14669).pdf



Specifications:

Country of Origin China
No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector N Female
Antenna Type Outdoor
Antenna Style Directional
Antenna Mount Pole
Antenna Color Other
Length (in) 43.7
Width (in) 7.9
Height (in) 1.9
Weight (lb) 11
Maximum Gain 11
Impedance Ω (Input/Output) 50
Cable Length (in) 20
Cable Type HDF-195
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material Passivated ADC 12
VSWR (Voltage Standing Wave Radio) <2:1
