This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.
This product is end of life, recommended product(s) are:

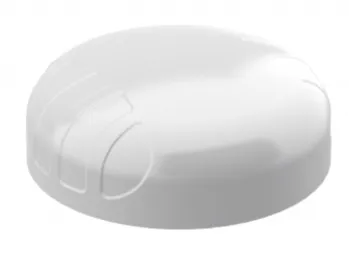

The PUCK Enclosure 5-in-1 Transportation & IoT/M2M Antenna 617 - 4200 MHz; 2X2 LTE (MIMO), 6dBi; 2X2 Wi-Fi (MIMO), 7.5dBi; GPS/GLONASS, 21dBi
Poynting’s new PUCK antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-5 consists of a 5-in-1 antenna system within a single housing, featuring 2X2 MIMO LTE, 2X2 MIMO Wi-Fi (Dual-band 2.4 GHz & 5 GHz) and GPS/GLONASS. The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 617 to 4200 MHz band, this includes the most popular international LTE/5G bands. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4 and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.
Key features
- 5-in-1 LTE high performance multi frequency
- 2G/3G/4G/LTE/5G antenna
- LTE (2X2 MIMO), Dual-band Wi-Fi (2X2 MIMO), GPS/GLONASS
- Wideband – covers wide frequency band, incl. 3.5 GHz CBRS band
- Ground plane independent
- Robust, vandal resistant and waterproof (IP 69K)
- Ideal for transportation, marine and IoT/M2M use
- Ultra-versatile mounting options for easy installation
A-PUCK-0005-V1-01 - 5-in-1 Transportation & IoT/M2M Antenna; 617 - 4200 MHz; 2X2 LTE (MIMO), 6 dBi; 2X2 Wi-Fi (MIMO), 7.5 dBi; GPS/GLONASS, 21 dBi (
