Taoglas MA1504.AK.001 Synergy 4x1 Cellular 5G/4G MIMO Permanent Mount Antenna |16.5ft Cable Assembly | SMA connections - MA1504.AK.001

Taoglas MA1504.AK.001 Synergy 4x1 Cellular 5G/4G MIMO Permanent Mount Antenna |16.5ft Cable Assembly | SMA connections

Call for Availability

Item Number: 16298
Model: MA1504.AK.001
Quantity:
Have a large deployment?
Request a Quote

Price:

$364.26

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

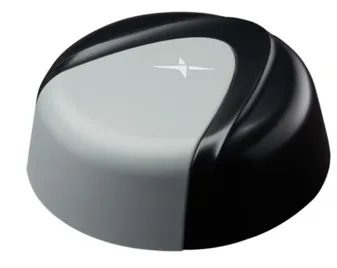

The Taoglas Synergy MA1504 is a 4-in-1 next-generation permanent mount antenna for vehicle roof applications. It has a fully IP67 rated waterproof robust PC enclosure and base. The 4 antennas inside support 600-6000MHz 5G/4G. This outstanding patent-pending antenna delivers powerful MIMO antenna technology for 5G/4G. The 5G/4G antennas also include backward compatibility to work at most worldwide 2G and 3G bands.

Typical Applications

  • Next Generation OEM Automotive Connectivity
  • Multimedia, Navigation and Telematics Systems
  • V2V, V2X and Fleet Management Applications
  • Real-time HD Video Streaming
  • First Net Responder Routers

The MA1504 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput. The MA1504 can also be customized for your particular wireless application and frequency band, subject to NRE and MOQ.

Features

  • 4 x 5G/4G MIMO Antenna
  • IP67 Rated Waterproof Enclosure
  • High Efficiency/Peak Gain Outdoor Antenna
  • Cable: 300mm RG-174 with 4700mm TGC-200
  • Connectors: SMA(M)
  • RoHS & REACH Compliant

Unique Identifiers: Black/Grey, IP67 rated, 300MM RG-174 with 4700MM TGC-200, SMA Male, RoHS & REACH Compliant



Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 4
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Male
Antenna Type Outdoor
Antenna Style Dome
Antenna Mount Surface
Antenna Color Other
Height (in) 2.26
Weight (lb) 4.7
Maximum Gain 6
Impedance Ω (Input/Output) 50
Cable Length (in) 198
Cable Type RG-174 with TGC-200 for 5G/4G
Minimum Temperature (F) -40
Maximum Temperature (F) 185
Material PC
