Transparent Flex Wi-Fi Antenna covering 2.4-5-7.125GHz w/converter and FAKRA Code I Male - TFX257.A
  • Transparent Flex Wi-Fi Antenna covering 2.4-5-7.125GHz w/converter and FAKRA Code I Male - Alternate view

Transparent Flex Wi-Fi Antenna covering 2.4-5-7.125GHz w/converter and FAKRA Code I Male

Call for Availability

Item Number: 20154
Model: TFX257.A
Quantity:

Price:

$45.13

Sale Price:

$33.85

You Save:

$11.28

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Wi-Fi Taoglas Invisible Antenna™

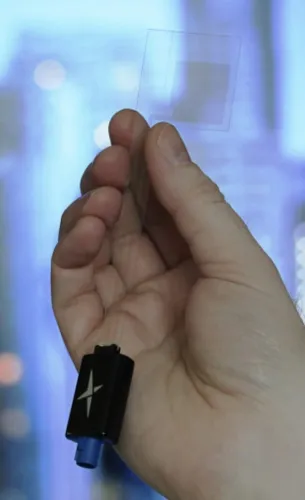

The TFX257 is a first of its kind, invisible antenna designed to cover the entire spectrum of Wi-Fi bands. The TFX257 has been expertly engineered by Taoglas with innovation in mind, the design is based on our excellent design history in pioneering flexible PCB antenna technology. TFX257 is supplied with pre adhered adhesive for ease of installation and has an enclosed carrier terminated with a FAKRA connector.

The transparent flexible antennas are an alternative to standard Flexible PCB antennas where the user may want to install an antenna in a covert area or on a surface, they may want to keep visible. The performance of the antenna is based on the environment where it is placed, care should be taken to mount at least 20mm from metal components where possible.

Typical Applications of Wi-Fi Invisible Antennas Include:

– Automotive and Commercial Transportation
– EV Charging and Parking Bays
– Digital Signage and Display screens
– Point Of Sale Kiosks

Invisible Antenna Installation:

The installation of the Taoglas Invisible Antenna™ series follows a similar installation method to flexible PCB antennas, as detailed in this application note. As installing a transparent material may show obvious flaws/debris, take care to wipe the area clean before adhering the antenna. The flexible antenna can be disconnected from the body to make installation easier. Where support may be an issue, we would advise using a double-sided adhesive on the housing to ensure the housing body installation does not add any additional pull force to the antenna as this will affect the antennas performance and the adhesive’s performance. The feed is not designed to be load bearing and loads of over 0.5Kg can break or damage the feed resulting in the antenna disconnecting.

The TFX257 is connected via a FAKRA Code I male connector for ease of installation.

Technical Specification

RoHS Yes
Antenna Type Embedded Antennas, Wi-Fi/Bluetooth
Mechanical Style Flex PCB
Gain (Max) 4.59
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type FAKRA CODE I Beige
Connector Body Style Straight
Polarity Linear
Frequency Range 2.4 / 5.8 / 7.125GHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
Wi-Fi Bands 2.4/5.8/7.125GHz
Length (mm) 32
Width (mm) 114
Height (mm) 0.5
Weight (g) 5


Specifications:

No. of Cellular Connectors 0
No. of WiFi Connectors 1
No. of GPS Connectors 0
WiFi Connector FAKRA CODE I Beige Female
Antenna Type Indoor
Antenna Style Omni
Antenna Mount Velcro/Adhesive
Antenna Color Other
Length (in) 1.26
Width (in) 4.49
Height (in) 0.02
Weight (lb) 0.01
Maximum Gain 4.59
Impedance Ω (Input/Output) 50
Minimum Temperature (F) -40
Maximum Temperature (F) 185
Material ABS/PC & PET
VSWR (Voltage Standing Wave Radio) 0
