Cellular Terminal Antenna for Assisted GPS 90 Hinged R/A SMA(M) White - TG.31.8113W

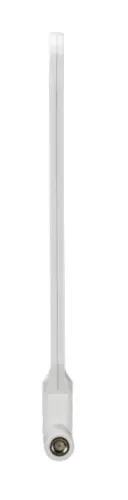

  • Cellular Terminal Antenna for Assisted GPS 90 Hinged R/A SMA(M) White - Connector view

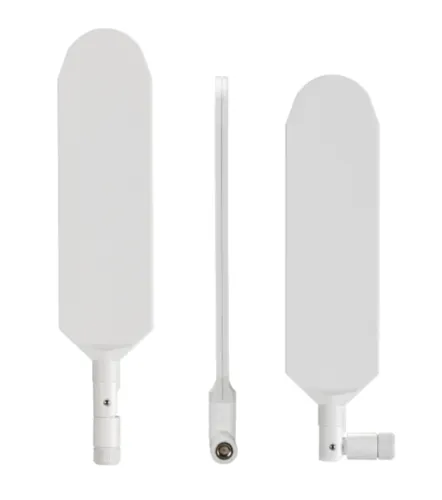

  • Cellular Terminal Antenna for Assisted GPS 90 Hinged R/A SMA(M) White - Multi-view

Cellular Terminal Antenna for Assisted GPS 90 Hinged R/A SMA(M) White

Call for Availability
Item Number: 20160
Model: TG.31.8113W
Quantity:

Price:

$8.95

Sale Price:

$6.71

You Save:

$2.24

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Wideband 5G/4G Antenna

The Taoglas TG.31.8113 has been expertly designed to meet the requirements of the next generation of 5G modules, gateways and routers. The TG.31 was created from the existing TG.30, meaning the already excellent TG.30 has been leveraged to create the TG.31. The antenna is a ground plane independent (Dipole) antenna with a SMA (M) connector and swivel mechanism that allows the antenna part to be rotated. The TG.31 exhibits high efficiency across the 600-6000MHz cellular spectrum.

Typical Applications Include:
– POS Kiosks
– Robotics and Autonomous
– Gateways and Routers

With very high efficiency on every cellular band globally, it is an ideal solution for any device requiring high, reliable performance. It is also guaranteed to meet any type of approval or carrier certification requirements from an RF standpoint. It is an omni-directional antenna, and the radiation patterns display this and are stable across all bands.

It has a quality robust UV resistant housing for use with wireless terminals. The swivel and hinge mechanism allows the antenna part itself to be orientated in different directions and can help avoid touching off other antennas or objects close by as well as helping with isolation by orientating the antenna in different directions in MIMO systems.

Technical Specifications

Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 3.94
Length (mm) 210
Width (mm) 45
Height (mm) 13
Weight (g) 60


Specifications:

No. of Cellular Connectors 1
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Male
Antenna Type Indoor
Antenna Style Paddle
Antenna Mount Screw-on
Antenna Color White
Length (in) 8.27
Width (in) 1.77
Height (in) 0.51
Weight (lb) 0.13
Maximum Gain 3.94
Impedance Ω (Input/Output) 50
Minimum Temperature (F) -40
Maximum Temperature (F) 185
Material UV Resistant PC/ABS
VSWR (Voltage Standing Wave Radio) 0
