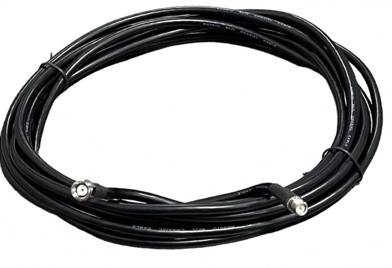

20 Foot Low Loss Cable (LMR240 Equivalent) (RP-SMA/Female & RP-SMA/Male Connectors) - Black

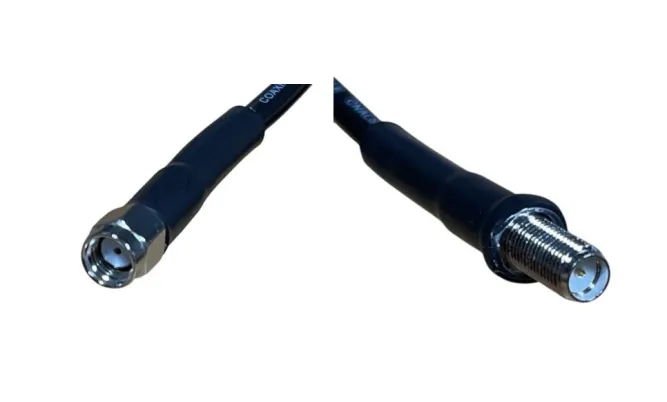

This 20' low loss cable has an RP-SMA/Male connector on one side and an RP-SMA/Female connector on the other.

This cable is used as an extension cable for WiFi antennas using cables terminated in RP-SMA Male.

Specifications:

• Cable length: 20'
• Connectors: RP-SMA/Male and RP-SMA/Female
• Cable diameter: 5.9mm (0.23in)
• Impedence: 50ohms

Signal Loss:

• The amount of signal attenuation you'll see depends on which frequency you're using. This cable averages approximately 2.75dB of signal loss. Attenuation for each frequency is below:

  • 700mhz: 1.9dB
  • 800mhz: 2.0dB
  • 1700mhz: 3.0dB
  • 1900mhz: 3.2dB
  • 2100mhz: 3.3dB
  • 2400mhz: 3.6dB
  • 2500mhz: 3.7dB
• Approximately .5dbm is lost at each connection between 2 cables
• To prevent excessive signal loss, this cable should NOT be daisy chained with other cables! It is always better to use one longer piece of cable than to screw two shorter cables together.
