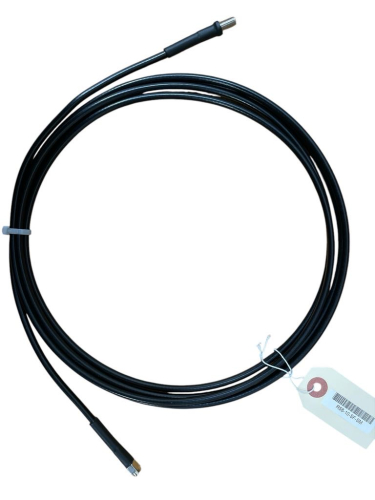

This 10' RG58 equivalent cable has an SMA/Male connector on one side and an SMA/Female connector on the other side. It is typically used to connect an antenna with an SMA/Male connector to a router or amplifier with an SMA/Female connector.
Specifications:
- Cable length: 10'

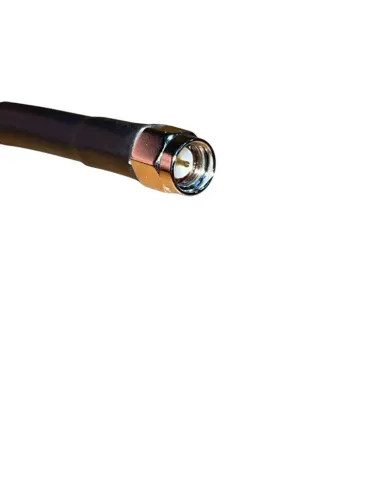

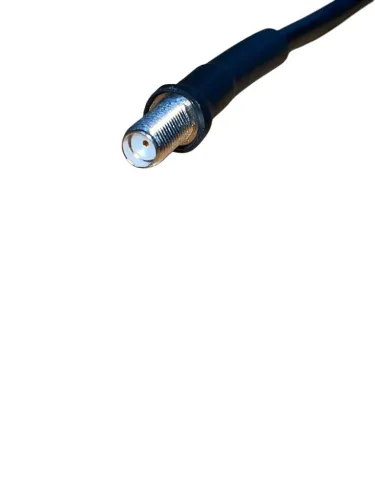

- Connectors: SMA/Male & SMA/Female
- Impedence: 50ohms
- Cable diameter: 3/16"
Signal Loss:
The amount of signal attenuation you'll see depends on which frequency you're using. This cable averages approximately 2.7dB of signal loss.
Attenuation for each frequency is below:
- 700mhz: 1.7dB
- 800mhz: 1.8dB
- 1700mhz: 2.4dB
- 1900mhz: 2.8dB
- 2100mhz: 3dB
- 2400mhz: 3.6dB
- 2500mhz: 3.7dB
Approximately .5dbm is lost at each connection between 2 cables
NOTE: To prevent excessive signal loss, this cable should NOT be daisy chained with other cables! It is always better to use one longer piece of cable than to screw two shorter cables together.
