LTM MAX - 8x5G/LTE, 3xWiFI 6e/7, 1xGNSS - 12 Cables x (1-ft Pigtail + 14-ft Jumpers) - LTXG1783-CJC-B-180

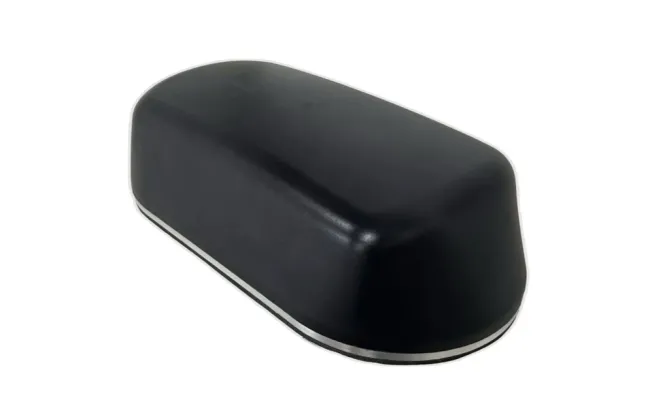

  • LTM MAX - 8x5G/LTE, 3xWiFI 6e/7, 1xGNSS - 12 Cables x (1-ft Pigtail + 14-ft Jumpers) - Side view
  • LTM MAX - 8x5G/LTE, 3xWiFI 6e/7, 1xGNSS - 12 Cables x (1-ft Pigtail + 14-ft Jumpers) - Top view

LTM MAX - 8x5G/LTE, 3xWiFI 6e/7, 1xGNSS - 12 Cables x (1-ft Pigtail + 14-ft Jumpers)

Call for Availability
Item Number: 20728
Model: LTXG1783-CJC-B-180
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,620.80

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Multi-carrier Multiband MIMO Antenna

12 cables: eight 5G/LTE, three WiFi 6E/7, one GNSS

  • Cable 1 – 8: 617-960 MHz, 2 dBi & 1710-7200 MHz, 5 dBi
  • Cable 9 – 11: 2.4-2.5 & 4.9-7.2 GHz, 5 dBi
  • Cable 12 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB ±3 dB / 4 dBiC

The 12-cable LTXG1783 (8x 5G/LTE, 3x WiFi 6E/7, GNSS) antenna includes eight Global 5G Sub-6 LTE antennas, three WiFi 6E/7 antennas, and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.

The Global LTE 5G-ready antenna element covers: 617-960 & 1400-7200 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

The LTXG1783 elements all fit in a rugged radome that measures only 10.7″ long x 5.5″ wide by 2.88″ tall (27.2 cm x 14 cm x 7.1 cm).

LTX1700_Series_Spec_Sheet(20743).pdf



Specifications:

No. of Cellular Connectors 8
No. of WiFi Connectors 3
No. of GPS Connectors 1
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Vehicle
Antenna Color Black
Length (in) 10.7
Width (in) 5.5
Height (in) 2.88
Weight (lb) 15
Maximum Gain 5
Impedance Ω (Input/Output) 50
Cable Length (in) 180
Cable Type RG-316 + LL-195 (cell & WiFi), RG-174 (GNSS)
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material UV Stable ASA
VSWR (Voltage Standing Wave Radio) < 2.5:1 (cell), < 2.0:1 (WiFi)
