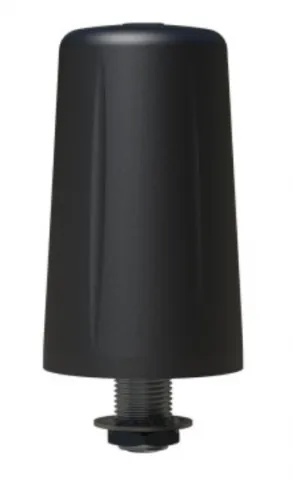

Panorama 3G/4G/LTE Thru-Roof Antenna - Cable Sold Separately - LPB-7-27-NJ

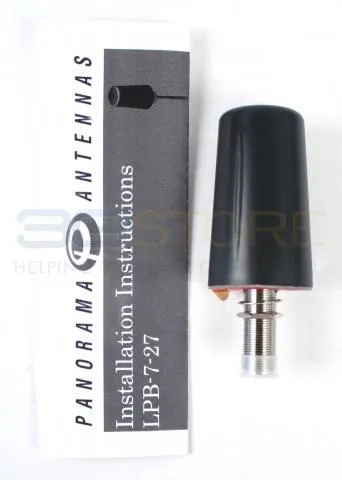

  • Panorama 3G/4G/LTE Thru-Roof Antenna - Cable Sold Separately - Contents

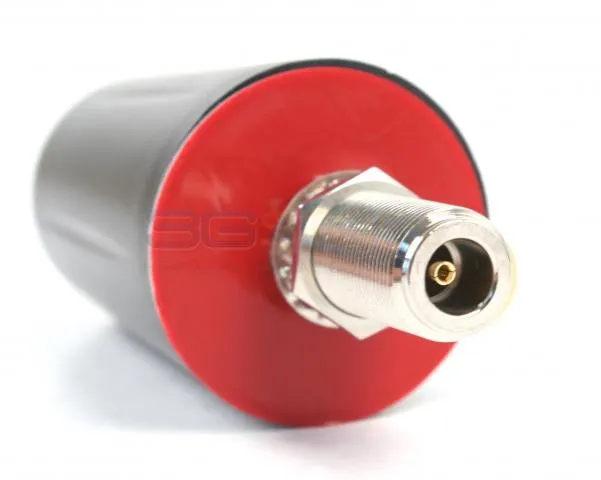

  • Panorama 3G/4G/LTE Thru-Roof Antenna - Cable Sold Separately - N Connector

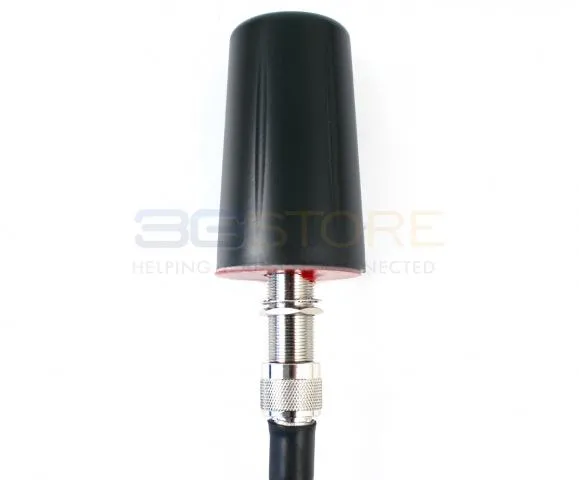

  • Panorama 3G/4G/LTE Thru-Roof Antenna - Cable Sold Separately - N Connection to Cable

Panorama LPB 3G/4G/LTE Low Profile Thru-Roof Antenna (Cable Sold Separately) - DISCONTINUED

No Longer Available

Item Number: 6228
Model: LPB-7-27-NJ

Price:

$33.00


DISCONTINUED ITEM - SCROLL DOWN FOR REPLACEMENT ITEMS
This product is end of life, recommended product(s) are:

Features:

  • Compatibility: 700-2600mhz cellular networks, which are used by most 2G, 3G, and 4G providers in the USA, including:
    • Verizon 2G/3G/4G/AWS (AWS gain may be limited in areas using the 1700mhz frequency)
    • Sprint 2G/3G/4G LTE
    • AT&T 2G/3G/4G/LTE
    • T-Mobile 3G/4G (AWS gain may be limited in areas using the 1700mhz frequency)
    • MetroPCS 3G/4G (AWS gain may be limited in areas using the 1700mhz frequency)
    • US Cellular 3G/4G
    • For other carriers, confirm which frequency your provider is using and make sure this antenna supports it before purchasing! Contact us if you need any assistance.
  • Height: 3.2" tall.
  • Cable: NO cable is included with this antenna. Various lengths are available; you can select your cable above. Depending on the cable selected and the device you are using, an adapter may be needed.
  • Ground Plane: Metal ground plane of 8" required.
  • Weatherproof? Yes, this antenna is designed for exterior use.
  • Mounting Requirements: This antenna requires that you drill a hole in the top of your RV/bus/coach to install it.
  • Portability: This antenna is designed to be permanently mounted through the roof of a vehicle and is not portable.


Specifications:

  • Model: LPB-7-27-NJ
  • Frequency Range: 700/800/900/1800/1900/2100/2400/2600mhz
  • Antenna gain:
    • 700MHz: 3 dBi
    • 800MHz: 3dBi
    • 900MHz: 4dBi
    • 1800MHz: 4dBi
    • 1900MHz: 5dBi
    • 2100MHz: 5dBi
    • 2400MHz: 5dBi
    • 2600MHz: 5dBi
  • Impedance: 50ohm
  • Dimensions: 3.2” x 1.89”
  • Connector: N/Female
  • Mount: Mounts thru metal surface
  • Polarization: Cross polarized
  • Radiation: Omni-directional
  • Operating Temperature: -40° / +80°C ( -40° / 176°F )
  • Material: High lmpact UV Stable ABS
  • Color: Black

Filter Reviews
   Last 2 Weeks (0)
    100% (6)
    0% (0)
    0% (0)
    0% (0)
    0% (0)

  Show Brief Review
  Show 5Gstore Comments
 Last 6 Months (0)
All Reviews (6)


Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 10/24/2022 by Scott T. (Rocklin, CA)
My company uses cell technology to monitor our equipment at FM radio translators and sometimes we'll run into one of two problems- the building is too well shielded for good cell reception, or there's something inside the building creating a bit of interference which prevents connection. I installed a set and now have five bars and perfect reception.

Date Added: 07/05/2022 by Ean. (Valdosta, GA)
Works as it should.

Date Added: 10/21/2018 by Alene H. (MOUNT GILEAD, OH)
Works as described!

Date Added: 09/26/2017 by Daryl K. (Mountain Home, AR)
I have used this product for just a short while here in the Ozarks where it seems to maintain 1 bar over what I would receive without the antanna. I have gotten as much as 3 bars in 4g, low as 2 bars in 3g with Verizon. When I have the chance for more testing in the future with wifi signal and more remote areas I hope to up grade this review. At this point I like the low profile, so far performance may not be the best of the best but for the cost I'm satisfied and does preform. I did find a nice magnetic mount for the truck and the roof for ground plane.

Date Added: 01/25/2017 by Tim C. (Austin, TX)
Right Size and works well

Date Added: 04/27/2016 by John M. (Roswell, GA)
Very fast turn around. Easy to order. Received follow up call from your customer service. Excellent customer service.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question

Sort By:

What would the result be if the Panorama antenna LPB-7-27-NJ was NOT used with a ground plane?

With no ground plane the antenna would have a reduced gain. Signal quality would be impacted as well. If you need a no ground plane antenna you'll need something larger like the 21" Omni 5Gstore.com/1/5159
