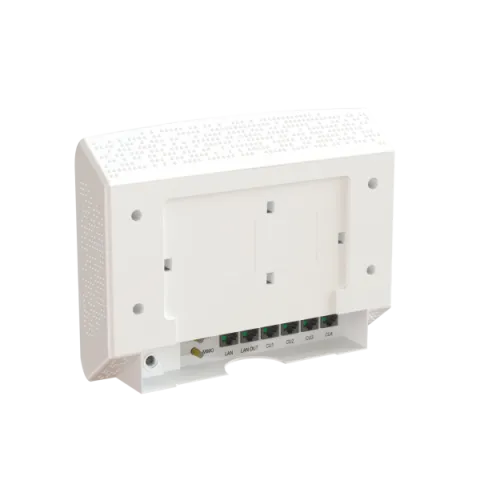

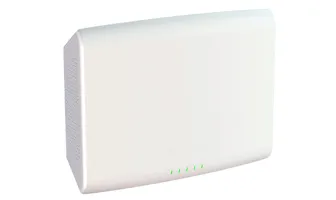

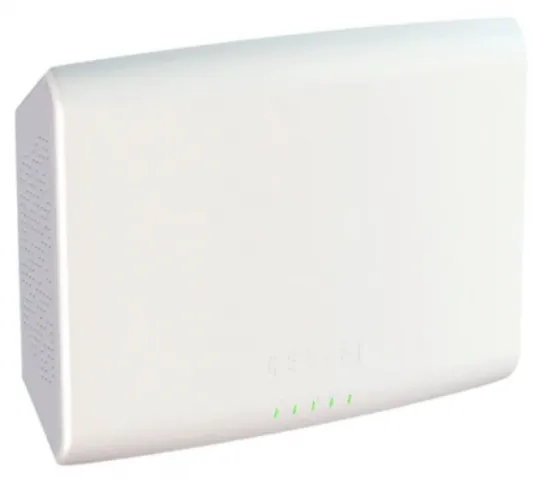

Cel-Fi QUATRA 2000 Network Unit (NU) for AT&T & Verizon

No Longer Available

Item Number: 7929
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The Cel-Fi QUATRA Network Unit (NU) is the hub of the system.  The scalable design works with one to four Coverage Units to provide up to 50,000 sq ft. of coverage.

  • Provides Donor Signal to Cel-Fi QUATRA 2000 System
  • Provides Power to Coverage Units (Up to Four)
  • Connects to WAVE Cloud Platform for Remote Monitoring and Management



Specifications

  • Power (Network Unit)
    • 54 VDC @ 2.22 Amp via external supply (51.3 to 56.7 VDC tolerance).
    • External supply: 100 to 240 VAC, 47 – 63Hz.
    • Power consumption less than 120W max.
    • Network Unit powers Coverage Units over Cat 5e (PoE).
  • Environmental
    • Operating temperature: 0° to 40°C
    • Storage temperature: -25° to 60°C
    • Convection Cooling.
    • Relative humidity: 0% to 95%, noncondensing
    • RoHS II 2011/65/EU.
    • IP20 Rated.
    • Installation
  • Mounting hardware included.
    • NU may be wall mounted (solid or hollow).
    • CUs may be wall or ceiling mounted.
    • 1 NU supports 1-4 CUs.
    • Mounting brackets allow for mounting flexibility.
    • iBwave supported.
  • Radio Performance
    • Supports bands 4, 5, 12, 13, 25:
      • Band 4:
        • DL: 2110-2155MHz, UL: 1710-1755MHz
        • Up to 20MHz contiguous boost BW, HSPA or LTE MIMO
      • Band 5:
        • DL: 869-894MHz, UL: 824-849MHz
        • Up to 15 MHz contiguous boost BW, HSPA or LTE SISO
      • Band 12:
        • DL: 729-746MHz, UL: 699-716MHz
        • Up to 10MHz contiguous boost BW, LTE MIMO
      • Band 13:
        • DL: 746-756 MHz, UL: 777-787 MHz
        • Up to 10 MHz contiguous boost BW, LTE MIMO
      • Band 25:
      • DL: 1930-1995 MHz, UL: 1850-1915 MHz
      • Up to 20 MHz contiguous boost BW, HSPA or LTE SISO
    • Total boost all-channel bandwidth 75MHz
    • DL Maximum NU in-band donor level -40dBm.
    • DL Maximum NU survival donor level 30dBm.
    • UL Maximum CU donor level -20dBm.
    • Internal MIMO antennas 0-2dBi (band dependent).
    • Maximum UL power 24dBm EIRP bands 4, 25
    • Maximum UL power 20dBm EIRP bands 5, 12, 13,
    • Maximum DL power 10dBm per 5 MHz EIRP all bands
    • LTE 5/10/15/20 MHz and WCDMA 3.84/5MHz bandwidths
  • Connections
    • 4x CU RJ45 Proprietary Gigabit link.
      • 100 meter max cable length per CU (200 meter with optional QUATRA Range Extender).
      • PoE
      • Cat 5e or better.
    • RJ45 LAN management port (10/100 Fast Ethernet).
    • RJ45 LAN management output port (10/100 Fast Ethernet).
    • 2x External RF Input (QMA Female 50 ohm).
  • Compliance
    • 3GPP TS 25.143 Rel.10
    • 3GPP TS 36.143 Rel.10
    • FCC Part 15, 20, 22, 24, 27
    • ISED Canada
    • UL 62368-1/CSA C27.2
    • Bluetooth BQB
  • Management
    • QUATRA Management Tool (QMT).
    • Supports WAVE cloud portal.
