Sierra Wireless AirLink RV55 Router with Cat 12 LTE Advanced Pro Modem - No Wifi

Benefits:

• Centrally managed, secure LTE broadband connectivity for both remote fixed or vehicle applications in harsh environments
• Ultra-Low Power consumption, ideal for solar or battery-powered installations.
• Connect your field workers and devices with flexible ethernet
• Reduces complexity in connecting legacy equipment with dual-serial, ethernet, and multi-protocol support
• Powerful remote cloud-based or on-premises management solutions
• Proven reliability and over 3 million AirLink routers and gateways deployed
• Peace of mind - included 3-year warranty, direct 24/7 support, and device management access

Specs:

• Cellular WAN
  • LTE Category: Cat 12
  • Peak Download: Up to 600 Mbps DL
  • Peak Upload: Up to 150 Mbps UL
  • Supported Frequency Bands
    • LTE: 2100(B1), 1900(B2),1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 700(B14), 850(B18), 850(B19), 800(B20), 850(B26), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)
    • 3G HSPA/HSPA+: 2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
  • Approvals:
    • Regulatory: FCC, IC, PTCRB
    • Carrier: Verizon, AT&T

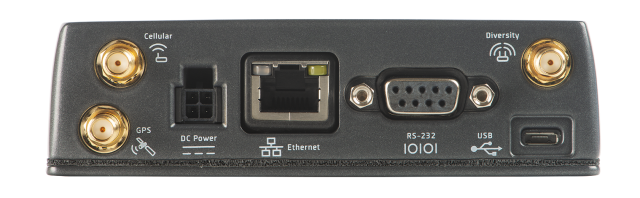

• Host Interfaces

  • 10/100/1000 Ethernet (RJ45)
  • RS-232 Serial Port on DB-9 Connector
  • USB 2.0 Micro-B Connector
  • 3 SMA antenna connectors (Primary, Secondary/Diversity, GPS)
  • Active GPS antenna support
• Input/Output

  • Configurable I/O pin on power connector
    • Digital Input ON Voltage: 2.7 to 36 VDC
    • Configurable Pull-up for dry contact input
    • Digital Open Collector Output > sinking 500 mA
    • Analog Input: 0.5-36 VDC
• LAN (Ethernet/USB)

  • DNS, DNS Proxy
  • DHCP Server
  • IP Passthrough
  • VLAN
  • Host Interface Watchdog
  • PPPoE
• Serial

  • TCP/UDP PAD Mode
  • Modbus (ASCII, RTU, Variable)
  • PPP
  • DNP3 Interoperability
  • Dual Serial option (with optional Y cable)
• Network and Routing

  • Network Address Translation (NAT)
  • Port Forwarding
  • Host Port Routing
  • NEMO/DMNR
  • VRRP
  • Reliable Static Route
  • Dynamic DNS
  • Verizon PNTM
  • IPV6 Gateway
• Satellite Navigation (GNSS)

  • 30 Channel GPS and GLONASS Receiver
  • Acquisition Time: 1s Hot Start
  • Accuracy:
  • Tracking Sensitivity: -160dBm
  • Reports: NMEA 0183 V3.0, TAIP, RAP, XORA
  • Multiple Redundant Servers
  • Reliable Store and Forward
• Security

  • Remote Authentication (LDAP, RADIUS and TACACS+)
  • DMZ
  • Inbound and Outbound Port filtering
  • Inbound and Outbound Trusted IP
  • MAC Address Filtering
  • PCI compatible
  • Secure Firmware Update
• Network Management

  • Secure mobile network & asset management application available in the cloud or licensed platform in the enterprise data center
  • Fleet wide firmware upgrade delivery
  • Router configuration and template management
  • Router staging over the air and local Ethernet connection
  • Over-the-air software and radio module firmware updates
  • Device Configuration Templates
  • Configurable monitoring and alerting
  • Remote provisioning and airtime activation (where applicable)
• Router Management

  • ALMS
  • Local web user interface
  • AT Command Line Interface (Telnet/SSH/Serial)
  • SMS Commands
  • SNMP
• Events Engine

  • Custom event triggers and reports
  • Configurable interface, no programming
  • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
  • Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
  • Event Actions: Drive Relay Output
• VPN

  • IPsec, GRE, and OpenVPN Client
  • Up to 5 concurrent tunnels
  • Split Tunnel
  • Dead Peer Detection (DPD)
  • FIPS 140-2 compatible
• Application Framework

  • ALEOS Application Framework (AAF)
  • LUA Scripting Language
• Power
  • Input Voltage: 7 to 36 VDC
  • LTE Idle Power: 900 mW (75 mA @ 12 VDC)
  • Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggeredon low voltage, I/O or periodic timer
  • Low voltage disconnect to prevent battery drain
  • Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
  • Ignition Sense with time delay shutdown
  • Configurable features and ports to optimize power consumption

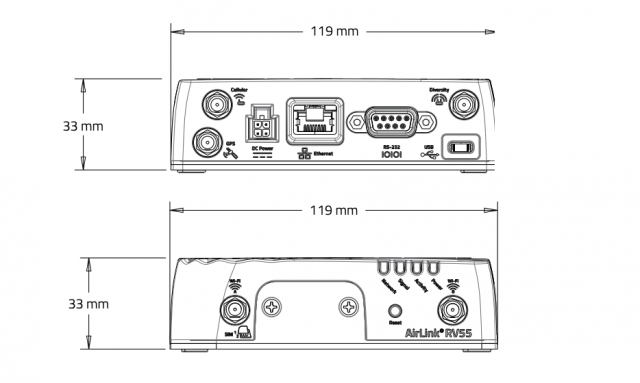

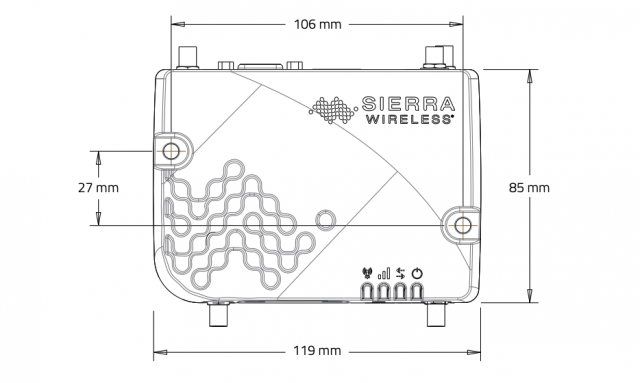

• Dimensions

  • 119 mm x 33 mm x 85 mm (102 mm including wi-fi connectors)
  • 4.69 in x 1.34 in x 3.35 in (3.70 in including connectors)
  • 320g / 0.7lb
• Environmental

  • Operating Temperature: -40°C to +70°C / -40°F to +158°F
  • Storage Temperature: -40°C to +85°C / -40°F to +185°F
  • Humidity: 90% RH @ 60°C
  • Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
  • IP64 rated ingress protection
• Industry Certifications

  • Safety: IECEE Certification Bodies Scheme (CB Scheme) UL 60950
  • Vehicle Usage: E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock & Vibration)
  • Hazardous Environments: Class 1 Div 2
  • Environmental: RoHS, REACH, WEEE
• Support and Warranty
  • Includes 1st Year AirLink Complete:

    • AirLink Management Service (ALMS)
    • Direct 24/7 Technical Support
    • 3-year standard warranty; optional 2-year warranty extension
• Minimum Requirements
  • SIM card with active LTE mobile broadband plan from a compatible provider
  • Cellular antennas
  • 2mm Hex L-wrench (required to access the SIM card slot)
