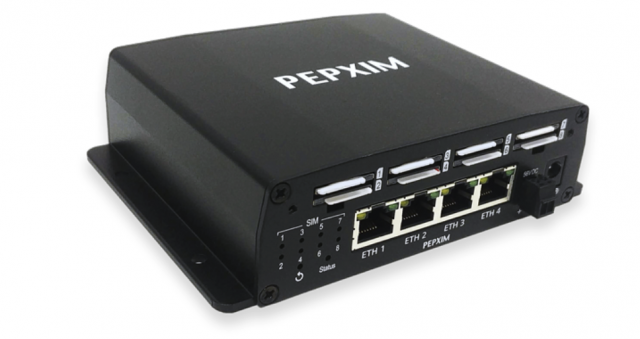

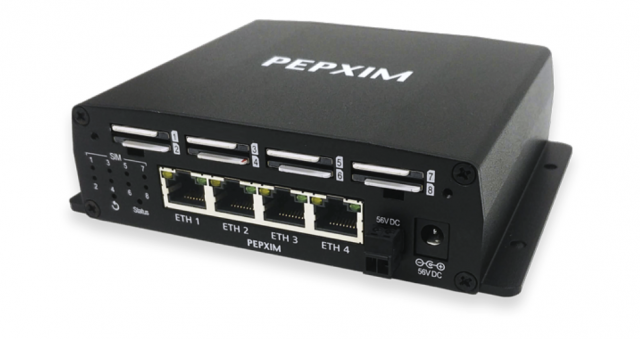

Pepwave SIM Injector for HD2/HD1 Dome and Select Peplink Models

In Stock

Item Number: 9744
Model: SIM-BK8-4E-56V



Using the SIM injector, you can add an additional eight SIM cards to your deployment. What’s more, these SIM cards can be located separately from the router.


  • SIM Slots: 8x Active SIM Slots, Standard Size
  • LAN Interface: 4x GE, PoE 802.3at Support (Requires 56V PSU)
  • Power Input: DC Jack/Terminal Block: 12-56V
  • Dimensions: 1.6 x 5.8 x 5 inches 40 x 147 x 128 mm
  • Weight: 430 grams 0.94 pounds
  • Operating Temperature: -40° – 149°F -40° – 65°C
  • Humidity: 15% – 95% (non-condensing)
  • Package Contents:
    • SIM Injector
    • Power Supply & cord (ACW-622-US)

Supported Models:

  • Balance series: 20X*, 310 5G, 310 Fiber 5G, 310X, 310X 5G, 380X*, 580X*, SDX Pro^, EPX^
  • MAX series: MBX, MBX 5G, MBX Mini, PDX, BR1 Classic (HW 3), BR1 ESN, BR1 Pro (HW 5/6, CAT-4 & CAT-6), BR2 Pro, BR1 IP55 (HW 4 or above), HD1 Dome, HD2 Dome, HD1 Dome Pro, HD2 Mini (SKU: MAX-HD2-MINI-XXXX-RM-T),  HD2 IP67(HW 4+), Transit Pro, Transit Pro E, Transit Core, UBR LTE, UBR Plus, SFE (HW 2 or above), SFE CAM.



There are currently no product reviews.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!

Click here to submit a new question

Sort By:

Can 1 Peplink SIM injector run two Peplink MAX HD1's?

Yes, One SIM injector can provide SIM injection for multiple routers. Page 7 of the user manual explains this functionality in more detail:

Pepwave FusionSIM Controller Guide Download installation guide/manual
Peplink InControl2 User Guide v1 Download installation guide/manual
