Sierra Wireless AirLink LX40 Integrated Broadband Router with Cat 4 LTE Modem + WiFi

In Stock

Item Number: 10075
Model: 1104573
Quantity:
Have a large deployment?
Request a Quote

Price:

$429.00

This router does not include antennas. Two cellular antennas are required to use the embedded modem, and one WiFi antenna is required to use the wireless access point. If you select one of the 4 in 1 antennas, you can simply disregard the GPS antenna lead.
Select Antennas (required) - details
This device only includes the hardwire DC power supply. If you need an AC or vehicle power supply, you can add one here.
Add a Power Adapter (optional) - details
The MP, RV, and GX series routers include Airlink Complete for 1 year. Airlink Complete includes:
  • Airlink Support, including direct access to dedicated Sierra Wireless technical support
  • AirLink Management Service (ALMS)
  • 3 year hardware warranty
Airlink Complete can be extended for up to 5 years at the time of purchase, or it can be renewed annually in the future if desired.
Extend Airlink Complete (optional) - details

Frequently Purchased Together »

Sierra Wireless AirLink LX40 w/ Cat 4 LTE + WiFi
Sierra Wireless AirLink LX40 Integrated Broadband Router with Cat 4 LTE Modem + WiFi
+ 5Gstore 2-Outlet IP Switch for Remote Automation - App Controlled
5Gstore 2-Outlet IP Switch for Remote Automation - App Controlled
$104.99 $89.99
= $518.99
Add to Cart
Monitor and reboot your router remotely!

Sierra Wireless AirLink LX40 w/ Cat 4 LTE + WiFi
Sierra Wireless AirLink LX40 Integrated Broadband Router with Cat 4 LTE Modem + WiFi
+ AC Power Supply for Sierra ES/GX/LS/MP/RV/RX and CloudGate
AC Power Supply for Sierra ES/GX/LS/MP/RV/RX and CloudGate
= $456.00
Add to Cart
Only the hardwire power harness is included!


Sierra Wireless AirLink LX40 Integrated Broadband Router with Cat 4 LTE Modem plus Wi-Fi is a fantastic out-of-the-box connectivity solution for digital signs, small business and security cameras. It will connect to a wide range of devices, from videos to low-power IoT, and will ensure that your mission-critical infrastructure is functioning at its peak efficiency.

The AirLink LX40 LTE features Cat 4 LTE (150/50 Mbps) and has a dual-band 2.5/5GHz Wi-Fi 802.11 Wave2. Interfaces included are Gigabit Ethernet port with PoE, RS485 and RS-232, USB 2.0 and digital I/O as well as analog inputs. The Airlink LX40 LTE includes Sierra Wireless’ top-notch security, including secure boot and secure firmware update, remote authentication, inbound and outbound trusted IP and inbound and outbound port filtering. This rugged polycarbonate unit meets industry certifications for safety (IECEE Certification and SAE J1455 for shock and vibration) and for vehicle usage (E-Mark and SAEJ1455).

Router Features:

  • Internet Connections Supported: 1 Embedded Cat 4 LTE, WiFi as WAN IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router!
  • Networks Supported for Embedded Modem:  LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (Firstnet), Band 66 – AWS 3 (1700/2100 MHz), Band 71 (600 MHz); WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
  • WiFi Standard: 802.11 b/g/n/ac
  • WiFi Range: 100-150' through walls, much greater unobstructed (variable depending on interference from other electronics and physical interference such as walls and ceilings)
  • Ports: 1 GBE LAN
  • Power supply: Hardwire DC power supply; AC power supply and cigarette lighter power supply are available separately
  • Size: 4.1 x 3.1 x 1.0"



Benefits:

  • Out-of-Box LTE Connectivity: Add LTE connectivity to your existing equipment
  • 150 Mbps LTE with optional Wi-Fi, plus LTE-M/NB-IoT version with extended coverage and reach for challenging locations
  • Enables edge processing with secure embedded application framework (ALEOS Application Framework)
  • Integrated 7-36VDC industrial grade power supply and –30C to +65C temperature range to provide superior reliability without need for additional power conditioning or adapters
  • Power-over-Ethernet powered device (PD) for fixed low power applications
  • ALMS Cloud or AMM On-Premises Management single pane device management across all devices

Specs:

  • Host Interfaces
    • 1 Gigabit RJ-45 Ethernet port
    • USB 2.0 Micro-B Connector
    • 2 SMA antenna connectors (Primary & Secondary/Diversity)
    • 1 RP SMA antenna connector (1x1 MIMO Wi-Fi)
  • WiFi
    • Dual Band 2.4/5GHz Wi-Fi
    • 802.11 b/g/n/ac (Wave2 Client Mode)
    • Support for 10 clients, WPA2 Enterprise
    • Output power 16dBm
    • Access Point or Client Mode (Wi-Fi as WAN)
    • Single SSID Support
    • Captive Portal
  • Input/Output
    • Configurable I/O
      • Digital Inputs: ON Voltage: 2.7 to 36 VDC
      • Configurable Pull-ups for dry contact input
      • Digital Open Collector Output > sinking 500 mA
      • Analog Inputs: 0.5-36VDC (range selectable)
  • LAN (Ethernet/USB)
    • DHCP Server
    • IP Passthrough
    • VLAN
    • Host Interface Watchdog
    • PPPoE
  • Network and Routing
    • Network Address Translation (NAT)
    • Port Forwarding
    • NEMO/DMNR
    • VRRP
    • Reliable Static Route
    • Ethernet WAN
    • Verizon PNTM
    • IPv6 Gateway
    • Policy Routing
    • Dynamic DNS
  • Security
    • Remote Authentication (LDAP, RADIUS and TACACS+)
    • DMZ
    • Inbound and Outbound Port filtering
    • Inbound and Outbound Trusted IP
    • MAC Address Filtering
    • PCI compatible
    • Secure Firmware Update
  • Network Management
    • Secure mobile network & asset management application available in the cloud or licensed platform in the enterprise data center
    • Fleet wide firmware upgrade delivery
    • Router configuration and template management
    • Router staging over the air and local Ethernet connection
    • Over-the-air software and radio module firmware updates
    • Device Configuration Templates
    • Configurable monitoring and alerting
    • Remote provisioning and airtime activation (where applicable)
  • Events Engine
    • Custom event triggers and reports Configurable interface, no programming
    • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
    • Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
    • Event Actions: Drive Relay Output
  • Environmental
    • Operating Temperature: -30°C to +65°C / -22°F to +149°F
    • Storage Temperature: -40°C to +85°C / -40°F to +185°F
    • Humidity: 90% RH @ 60°C
    • Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
    • IP21 rated ingress protection
  • VPN
    • IPsec, GRE, and OpenVPN Client
    • Up to 5 concurrent tunnels
    • Split Tunnel
    • Dead Peer Detection (DPD)
  • Router Management
    • Local web user interface
    • AT Command Line Interface (Telnet/SSH/Serial)
    • SNMP
    • SMS Commands
  • Application
    • ALEOS Application Framework (AAF)
    • LUA Scripting Language
  • Power
    • Input Voltage: 7 to 36 VDC
    • Low voltage disconnect to prevent battery drain
    • Built-in protection against voltage transients including 5 VDC engine cranking
    • Power-over-Ethernet (PoE) powered device
    • Ignition Sense with time delay shutdown

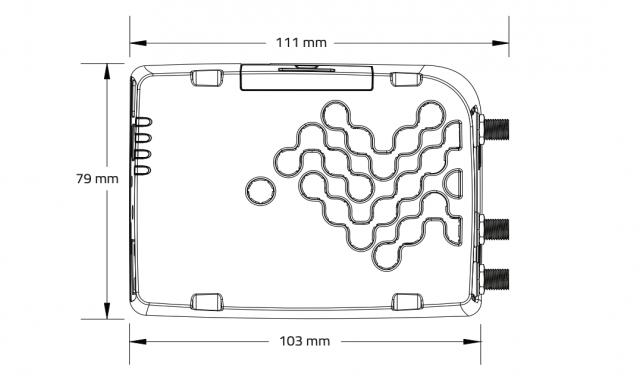

  • Dimensions
    • 103 mm (111 mm including connectors) x 79 mm x 25 mm
    • 4.1 in (4.4 in including connectors) x 3.1 in x 1.0 in
  • Industry Certifications
    • Safety: IECEE Certification Bodies Scheme (CB Scheme) UL 60950
    • Vehicle Usage: E-Mark (UN ECE Regulation 10.04), ISO7637- 2, SAE J1455 (Shock, Vibration, Electrical)
    • Environmental: RoHS2, REACH, WEEE
  • Support and Warranty
    • 3 year standard warranty
    • Optional additional 2 year warranty extension
    • Unrestricted device software upgrades
    • 1-day Accelerated Hardware Replacement available through participating resellers
  • Minimum Requirements
    • SIM card with active mobile broadband plan from a compatible provider
    • 2mm Hex L-wrench (required to access the SIM card slot)
