Sierra Wireless AirLink LX40 Integrated Broadband Router with Cat 4 LTE Modem

Benefits:

• Out-of-Box LTE Connectivity: Add LTE connectivity to your existing equipment
• 150 Mbps LTE with optional Wi-Fi, plus LTE-M/NB-IoT version with extended coverage and reach for challenging locations
• Enables edge processing with secure embedded application framework (ALEOS Application Framework)
• Integrated 7-36VDC industrial grade power supply and –30C to +65C temperature range to provide superior reliability without need for additional power conditioning or adapters
• Power-over-Ethernet powered device (PD) for fixed low power applications
• ALMS Cloud or AMM On-Premises Management single pane device management across all devices

Specs:

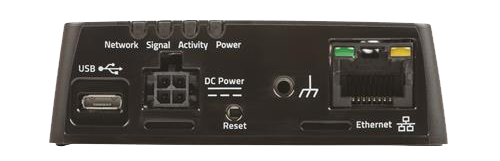

• Host Interfaces

  • 1 Gigabit RJ-45 Ethernet port
  • USB 2.0 Micro-B Connector
  • 2 SMA antenna connectors (Primary & Secondary/Diversity)
• Input/Output

  • Configurable I/O

    • Digital Inputs: ON Voltage: 2.7 to 36 VDC
    • Configurable Pull-ups for dry contact input
    • Digital Open Collector Output > sinking 500 mA
    • Analog Inputs: 0.5-36VDC (range selectable)
• LAN (Ethernet/USB)

  • DHCP Server
  • IP Passthrough
  • VLAN
  • Host Interface Watchdog
  • PPPoE
• Network and Routing

  • Network Address Translation (NAT)
  • Port Forwarding
  • NEMO/DMNR
  • VRRP
  • Reliable Static Route
  • Ethernet WAN
  • Verizon PNTM
  • IPv6 Gateway
  • Policy Routing
  • Dynamic DNS
• Security

  • Remote Authentication (LDAP, RADIUS and TACACS+)
  • DMZ
  • Inbound and Outbound Port filtering
  • Inbound and Outbound Trusted IP
  • MAC Address Filtering
  • PCI compatible
  • Secure Firmware Update
• Network Management

  • Secure mobile network & asset management application available in the cloud or licensed platform in the enterprise data center
  • Fleet wide firmware upgrade delivery
  • Router configuration and template management
  • Router staging over the air and local Ethernet connection
  • Over-the-air software and radio module firmware updates
  • Device Configuration Templates
  • Configurable monitoring and alerting
  • Remote provisioning and airtime activation (where applicable)
• Events Engine

  • Custom event triggers and reports Configurable interface, no programming
  • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
  • Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
  • Event Actions: Drive Relay Output
• Environmental

  • Operating Temperature: -30°C to +65°C / -22°F to +149°F
  • Storage Temperature: -40°C to +85°C / -40°F to +185°F
  • Humidity: 90% RH @ 60°C
  • Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
  • IP21 rated ingress protection
• VPN

  • IPsec, GRE, and OpenVPN Client
  • Up to 5 concurrent tunnels
  • Split Tunnel
  • Dead Peer Detection (DPD)
• Router Management
  • Local web user interface
  • AT Command Line Interface (Telnet/SSH/Serial)
  • SNMP
  • SMS Commands
• Application

  • ALEOS Application Framework (AAF)
  • LUA Scripting Language
• Power
  • Input Voltage: 7 to 36 VDC
  • Low voltage disconnect to prevent battery drain
  • Built-in protection against voltage transients including 5 VDC engine cranking
  • Power-over-Ethernet (PoE) powered device
  • Ignition Sense with time delay shutdown
• Dimensions

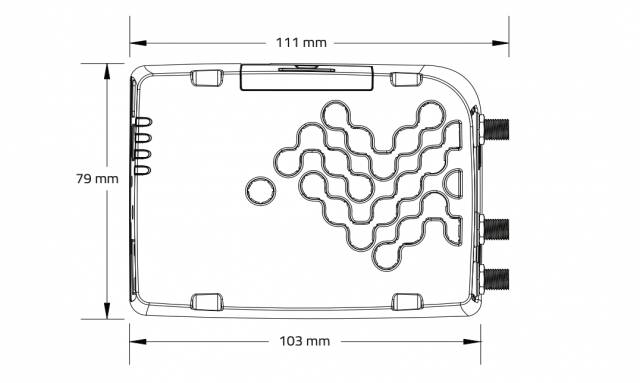

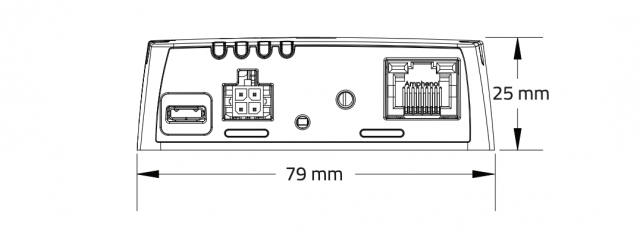

  • 103 mm (111 mm including connectors) x 79 mm x 25 mm
  • 4.1 in (4.4 in including connectors) x 3.1 in x 1.0 in
• Industry Certifications

  • Safety: IECEE Certification Bodies Scheme (CB Scheme) UL 60950
  • Vehicle Usage: E-Mark (UN ECE Regulation 10.04), ISO7637- 2, SAE J1455 (Shock, Vibration, Electrical)
  • Environmental: RoHS2, REACH, WEEE
• Support and Warranty

  • 3 year standard warranty
  • Optional additional 2 year warranty extension
  • Unrestricted device software upgrades
  • 1-day Accelerated Hardware Replacement available through participating resellers
• Minimum Requirements
  • SIM card with active mobile broadband plan from a compatible provider
  • 2mm Hex L-wrench (required to access the SIM card slot)
