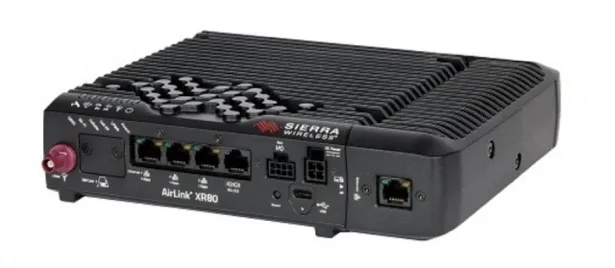

Sierra Wireless AirLink XR80 Vehicle Router with 5G/Cat 20 LTE Modem + WiFi

20 Support Docs

In Stock

Item Number: 10926
Model: 1104789

Have a large deployment?
Request a Quote

Add a Cellular Data Plan

Price:

$1,799.00

Upgrade AirLink Complete (XR80, new device) - details

Contact Me When the XR80 WITH WIFI is Available

The Sierra Wireless AirLink XR80 Vehicle Router with 5G/Cat 20 LTE Modem + WiFi is on backorder. Sign up here to be notified when it is available.
Email Address:	*
Name:	*
Phone:
quantity needed
Comments:

Sierra Wireless AirLink XR80 Vehicle Router with 5G/Cat 20 LTE Modem + WiFi The supercharged AirLink XR80 is optimized for fixed and mobile applications. The available dual-5G cellular radio and 5X4 MIMO Wi-Fi 6 delivers flexibility for customized configurations. The AirLink XR80 supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridged-based design, enables long-term expandability and upgradability. The AirLink XR80 is a fully-supported, out-of-the box solution complete with integrated device management and 24/7 technical support. AirLink Connection Manager delivers complete VPN security and our AirLink Professional Services maximizes your system performance and customer satisfaction. Router Features: Internet Connections Supported: 1 Embedded 5G/Cat 20 LTE IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router, WiFi as WAN* ( more info ) Networks Supported for Embedded Modem: 5G: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71) WiFi Standard: 4x4 MIMO Wi-Fi 6 AP/STA Ports: 4 x 10/100/1000 LAN, 2 RS-232 serial Power supply: Hardwire DC power supply; AC power supply is available separately Size: 6.69" x 8.66" in x 2.08" *Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss. 1104789 1104789

Sierra Wireless

Router

812320006163

$ $1,799.00 812320006163 https://5gstore.com/product/10926_sierra_wireless_airlink_xr80_vehicle_router_with_5gcat_20_lte_modem_wifi.html

The supercharged AirLink XR80 is optimized for fixed and mobile applications. The available dual-5G cellular radio and 5X4 MIMO Wi-Fi 6 delivers flexibility for customized configurations. The AirLink XR80 supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridged-based design, enables long-term expandability and upgradability.

The AirLink XR80 is a fully-supported, out-of-the box solution complete with integrated device management and 24/7 technical support. AirLink Connection Manager delivers complete VPN security and our AirLink Professional Services maximizes your system performance and customer satisfaction.

Router Features:

Internet Connections Supported: 1 Embedded 5G/Cat 20 LTE IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router, WiFi as WAN* (more info)
Networks Supported for Embedded Modem:
- 5G: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
- LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71)
WiFi Standard: 4x4 MIMO Wi-Fi 6 AP/STA
Ports: 4 x 10/100/1000 LAN, 2 RS-232 serial
Power supply: Hardwire DC power supply; AC power supply is available separately
Size: 6.69" x 8.66" in x 2.08"

*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss.

Benefits:

Designed for fixed and mobile mission and business-critical applications that require ultimate connectivity and reliability
Real-time connectivity with unmatched uplink and downlink speeds using 5G, Wi-Fi 6 and 5Gbps Ethernet technology
"Always-on" connectivity delivers consistent primary and backup connectivity for public and private networks using AirLink Cognitive Wireless
Simplified set up and useability with new AirLink OS and upgraded AirLink Management Service (ALMS)
New AirLink Premium with ALMS Out-of-Band Management provides zero-touch set up and reduced service calls
Ready for your Edge computing workloads
AirLink Complete: Best-in-class support services covering AirLink XR80 devices. Includes:
- AirLink Management Service (ALMS) network management and optional ALMS Advanced Mobility Reporting (AMR)
- 24/7/365 Tier 1 technical support from wireless experts via phone or online access
- Extended hardware warranty – up to 5 years
VPN: AirLink Connection Manager (ACM) is a mobile-optimized VPN solution that securely extends the enterprise network to the vehicle.
Professional Services: Full product life-cycle services including solution consulting and solution implementation services delivered by Sierra Wireless Network Engineers and Program Managers.

Specs:

Cellular WAN
- Peak DL: 5G - Up to 4.14 Gbps DL, 4G LTE-A Pro CAT20 - Up to 2 Gbps DL
- Peak UL: 5G - Up to 660 Mbps UL, 4G LTE-A Pro CAT20 - 210 Mbps UL
- 5G Frequency Bands: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
- 4G LTE Frequency Bands: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71)
- 3G WCDMA/HSPA+ Frequency Bands: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
- LPWA Frequency Bands: B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B66
- Approvals:
  - Regulatory: FCC, IC, PTCRB, GCF, CE, RED, RCM
  - Carrier: Verizon, AT&T, T-Mobile (pending)
Host Interfaces
- 3x RJ-45 Ethernet ports (1x5Gbps with PTP IEEE 1588, 2x1Gbps)
- LPWA ALMS Out-of-Band Management
- USB 3.2 Type-C port
- Dual RS-232 serial port on RJ-45
- Aux Port (GPIO/CAN)
- Dual SIM Slots

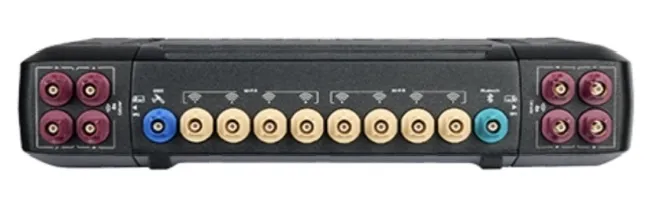

- 11 FAKRA antenna connectors (Dual 4x4 Cellular, 5x4 Wi-Fi, GNSS, LPWA)
WiFi
- 4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps
- 1x1 MIMO Wi-Fi 6 STA
- Support for 128 clients
- WPA2/3Enterprise
- Wi-Fi WAN and Wi-Fi Access Point (concurrently)
- High output power 21 dBm (per chain)
- Captive Portal (future)
Network and Routing
- Sierra Cognitive Wireless
- IPv4 and IPv6 Routing
- Network Address Translation (NAT)
- LAN Segmentation
- IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing
- QoS: Application/ Traffic Priority Queuing WAN Monitors: Connection Failure Recovery Configurable MTU size
- Multiple LAN Support
- Customize transmission buffer size
- Static Routing
- WAN Ethernet
VPN
- Integrated with ACM VPN Server
- IPsec protocol with IKEv1/IKEv2
- FIPS 140-2
- Encryption: AES128/AES192/AES256
- Hashing: SHA256/SHA384/SHA512
- Key Exchange: DHGroup14/15/16/17/18/19/20/21 LAN to LAN and Host to LAN
- Up to 10 concurrent tunnels per link MOBIKE protocol
- IP compression
- Full/Split Tunnel
- Dead Peer Detection (DPD)
Security
- AAA: 802.1x /Radius authentication with Wi-Fi and Ethernet
- Firewall: Stateful firewall with port forwarding, DMZ,
  WLAN Encryption: WPA2/WPA3 Personal/Enterprise
- FIPS 140-2
Environmental
- Operating Temperature: -30°C to +70°C / -22°F to +158°F
- Storage Temperature: -40°C to +85°C / -40°F to +185°F
- Humidity: 95% RH @ 60C
- Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
- IP64 rated ingress protection
Power
- Input/Operating Voltage: 7 to 36 VDC
- Power modes: Peak 54W (4.5A @12V); Standby 55mW (4.5mA@12V)
- Built-in protection against voltage transients including 5 VDC engine cranking
- Ignition Sense with time delay shutdown
Dimensions
- Size: 220mm x 170mm x 53mm (6.69in x 8.66in x 2.08in)
- Weight 2.06 Kg (4.5 Lbs.)
Industry Certifications
- Safety: IECEE Certification Bodies Scheme (CB Scheme), UL 60950
- Vehicle Usage: E-Mark (72/245/EEC, 2009/19/EC), ISO7637- 2, SAE J1455 (Shock & Vibration)
- Environmental: RoHS2, REACH, WEEE Rail Usage: EN50155 (Rolling Stock)
Support and Warranty
- 3 year standard warranty
- Optional additional 2 year warranty extension
- Unrestricted device software upgrades
