XR90, Dual 5G Router, North America, includes 1-year AirLink Premium - 1104786

XR90, Dual 5G Router, North America, includes 1-year AirLink Premium

1 Customer Review 18 Support Docs

In Stock

Item Number: 10929
Model: 1104786

Quantity:

Have a large deployment?
Request a Quote

Add a Cellular Data Plan

Price:

$2,899.00

- details

General

Details

Customer Reviews

Q & A

Support

Accessories

Photos & Videos

XR90, Dual 5G Router, North America, includes 1-year AirLink Premium The supercharged AirLink XR90 is purpose-built for public safety and transit with available dual-5G cellular radios and dual independent 4x4 MIMO Wi-Fi 6 antennas. It is the highest performing, most flexible router in the Sierra portfolio. It supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridged-based design, enables long-term expandability and upgradability. The AirLink XR90 is a fully-supported, out-of-the box solution complete with integrated device management, advanced mobility reporting and 24/7 technical support. AirLink Connection Manager delivers complete VPN security and our AirLink Professional Services maximizes your system performance and customer satisfaction. Router Features: Internet Connections Supported: 2 x Embedded 5G/Cat 20 LTE IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router , WiFi as WAN Networks Supported for Embedded Modem: 5G: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71) WiFi Standard: Dual independent 4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps Ports: 1x 5Gbps WAN, 4x 1Gbps LAN (ports convertible to WAN or LAN), 2x RS-232 serial Power supply: Hardwire DC power supply, AC power supplies (sold separetely) Size: 6.69" x 8.66" in x 2.08" Benefits: Designed for rugged mobile applications with Mil Standard aluminum die cast housing and adaptive power management Real-time connectivity with unmatched uplink and downlink speeds using Data Path Accelerated 5G, Wi-Fi 6 and 5Gbps Ethernet technology “Always-on” connectivity using available dual cellular and dual Wi-Fi radios, and automatic failover using AirLink Cognitive Wireless Simplified set up and usability with new AirLink OS and upgraded AirLink Management Service (ALMS) New AirLink Premium with ALMS Out-of-Band Management provides zero-touch set up and reduced service calls Ready for your Edge computing workloads AirLink Complete: Best-in-class support services covering AirLink XR90 devices. Includes: AirLink Management Service (ALMS) network management and optional ALMS Advanced Mobility Reporting (AMR) 24/7/365 Tier 1 technical support from wireless experts via phone or online access Extended hardware warranty – up to 5 years VPN: AirLink Connection Manager (ACM) is a mobile-optimized VPN solution that securely extends the enterprise network to the vehicle. Professional Services: Full product life-cycle services including solution consulting and solution implementation services delivered by Sierra Wireless Network Engineers and Program Managers. Specs: Cellular WAN Peak DL: 5G - Up to 4.14 Gbps DL, 4G LTE-A Pro CAT20 - Up to 2 Gbps DL Peak UL: 5G - Up to 660 Mbps UL, 4G LTE-A Pro CAT20 - 210 Mbps UL 5G Frequency Bands: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 4G LTE Frequency Bands: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71) 3G WCDMA/HSPA+ Frequency Bands: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19) LPWA Frequency Bands: B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B66 Approvals: Regulatory: FCC, IC, PTCRB, GCF, CE, RED, RCM Carrier: Verizon, AT&T, T-Mobile (pending) Host Interfaces 5x RJ-45 Ethernet ports (1x5Gbps, 4x1Gbps) LPWA ALMS Out-of-Band Management USB 3.2 Type-C port Dual RS-232 serial port on RJ-45 Aux Port (GPIO/CAN)Dual SIM Slots Bluetooth (future) 19x FAKRA antenna connectors (8x4 Cellular, Dual 4x4 Wi-Fi, GNSS, Bluetooth, LPWA) WiFi Dual independent 4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps Support for 128 clients WPA2/3Enterprise Wi-Fi WAN and Wi-Fi Access Point (concurrently) High output power 21 dBm (per chain) Captive Portal (future) Network and Routing Sierra Cognitive Wireless IPv4 and IPv6 Routing Network Address Translation (NAT) LAN Segmentation IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing QoS: Application/ Traffic Priority Queuing WAN Monitors: Connection Failure Recovery Configurable MTU size Multiple LAN Support Customize transmission buffer size Static Routing WAN Ethernet VPN Integrated with ACM VPN Server IPsec protocol with IKEv1/IKEv2 FIPS 140-2 Encryption: AES128/AES192/AES256 Hashing: SHA256/SHA384/SHA512 Key Exchange: DHGroup14/15/16/17/18/19/20/21 LAN to LAN and Host to LAN Up to 10 concurrent tunnels per link MOBIKE protocol IP compression Full/Split Tunnel Dead Peer Detection (DPD) Security AAA: 802.1x /Radius authentication with Wi-Fi and Ethernet Firewall: Stateful firewall with port forwarding, DMZ, WLAN Encryption: WPA2/WPA3 Personal/Enterprise FIPS 140-2 Environmental Operating Temperature: -30°C to +70°C / -22°F to +158°F Storage Temperature: -40°C to +85°C / -40°F to +185°F Humidity: 95% RH @ 60C Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity IP64 rated ingress protection Power Input/Operating Voltage: 7 to 36 VDC Power modes: Dual 5G Peak 68W (5.7A @12V); Standby 55mW (4.5mA@12V) Built-in protection against voltage transients including 5 VDC engine cranking Ignition Sense with time delay shutdown Dimensions Size: 220mm x 170mm x 53mm (6.69in x 8.66in x 2.08in) Weight 2.06 Kg (4.5 Lbs.) Industry Certifications Safety: IECEE Certification Bodies Scheme (CB Scheme), UL 60950 Vehicle Usage: E-Mark (72/245/EEC, 2009/19/EC), ISO7637- 2, SAE J1455 (Shock & Vibration) Environmental: RoHS2, REACH, WEEE Rail Usage: EN50155 (Rolling Stock) 1104786 1104786

Sierra Wireless

Router

812320006156

$ $2,899.00 812320006156 https://5gstore.com/product/10929_sierra_wireless_airlink_xr90_vehicle_router_with_2_x_4g5gcat_20_lte_modems.html

5.00 1

The supercharged AirLink XR90 is purpose-built for public safety and transit with available dual-5G cellular radios and dual independent 4x4 MIMO Wi-Fi 6 antennas. It is the highest performing, most flexible router in the Sierra portfolio. It supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridged-based design, enables long-term expandability and upgradability.

The AirLink XR90 is a fully-supported, out-of-the box solution complete with integrated device management, advanced mobility reporting and 24/7 technical support. AirLink Connection Manager delivers complete VPN security and our AirLink Professional Services maximizes your system performance and customer satisfaction.

Router Features:

Internet Connections Supported: 2 x Embedded 5G/Cat 20 LTE IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router, WiFi as WAN
Networks Supported for Embedded Modem:
- 5G: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
- LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71)
WiFi Standard: Dual independent 4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps
Ports: 1x 5Gbps WAN, 4x 1Gbps LAN (ports convertible to WAN or LAN), 2x RS-232 serial
Power supply: Hardwire DC power supply, AC power supplies(sold separetely)
Size: 6.69" x 8.66" in x 2.08"

Benefits:

Designed for rugged mobile applications with Mil Standard aluminum die cast housing and adaptive power management
Real-time connectivity with unmatched uplink and downlink speeds using Data Path Accelerated 5G, Wi-Fi 6 and 5Gbps Ethernet technology
“Always-on” connectivity using available dual cellular and dual Wi-Fi radios, and automatic failover using AirLink Cognitive Wireless
Simplified set up and usability with new AirLink OS and upgraded AirLink Management Service (ALMS)
New AirLink Premium with ALMS Out-of-Band Management provides zero-touch set up and reduced service calls
Ready for your Edge computing workloads
AirLink Complete: Best-in-class support services covering AirLink XR90 devices. Includes:
- AirLink Management Service (ALMS) network management and optional ALMS Advanced Mobility Reporting (AMR)
- 24/7/365 Tier 1 technical support from wireless experts via phone or online access
- Extended hardware warranty – up to 5 years
VPN: AirLink Connection Manager (ACM) is a mobile-optimized VPN solution that securely extends the enterprise network to the vehicle.
Professional Services: Full product life-cycle services including solution consulting and solution implementation services delivered by Sierra Wireless Network Engineers and Program Managers.

Specs:

Cellular WAN
- Peak DL: 5G - Up to 4.14 Gbps DL, 4G LTE-A Pro CAT20 - Up to 2 Gbps DL
- Peak UL: 5G - Up to 660 Mbps UL, 4G LTE-A Pro CAT20 - 210 Mbps UL
- 5G Frequency Bands: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
- 4G LTE Frequency Bands: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71)
- 3G WCDMA/HSPA+ Frequency Bands: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
- LPWA Frequency Bands: B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B66
- Approvals:
  - Regulatory: FCC, IC, PTCRB, GCF, CE, RED, RCM
  - Carrier: Verizon, AT&T, T-Mobile (pending)
Host Interfaces
- 5x RJ-45 Ethernet ports (1x5Gbps, 4x1Gbps)
- LPWA ALMS Out-of-Band Management
- USB 3.2 Type-C port
- Dual RS-232 serial port on RJ-45
- Aux Port (GPIO/CAN)Dual SIM Slots
- Bluetooth (future)

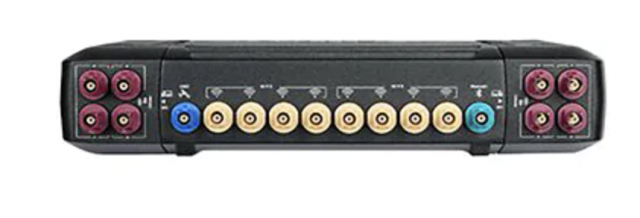

- 19x FAKRA antenna connectors (8x4 Cellular, Dual 4x4 Wi-Fi, GNSS, Bluetooth, LPWA)
WiFi
- Dual independent 4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps
- Support for 128 clients
- WPA2/3Enterprise
- Wi-Fi WAN and Wi-Fi Access Point (concurrently)
- High output power 21 dBm (per chain)
- Captive Portal (future)
Network and Routing
- Sierra Cognitive Wireless
- IPv4 and IPv6 Routing
- Network Address Translation (NAT)
- LAN Segmentation
- IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing
- QoS: Application/ Traffic Priority Queuing WAN Monitors: Connection Failure Recovery Configurable MTU size
- Multiple LAN Support
- Customize transmission buffer size
- Static Routing
- WAN Ethernet
VPN
- Integrated with ACM VPN Server
- IPsec protocol with IKEv1/IKEv2
- FIPS 140-2
- Encryption: AES128/AES192/AES256
- Hashing: SHA256/SHA384/SHA512
- Key Exchange: DHGroup14/15/16/17/18/19/20/21 LAN to LAN and Host to LAN
- Up to 10 concurrent tunnels per link MOBIKE protocol
- IP compression
- Full/Split Tunnel
- Dead Peer Detection (DPD)
Security
- AAA: 802.1x /Radius authentication with Wi-Fi and Ethernet
- Firewall: Stateful firewall with port forwarding, DMZ,
  WLAN Encryption: WPA2/WPA3 Personal/Enterprise
- FIPS 140-2
Environmental
- Operating Temperature: -30°C to +70°C / -22°F to +158°F
- Storage Temperature: -40°C to +85°C / -40°F to +185°F
- Humidity: 95% RH @ 60C
- Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
- IP64 rated ingress protection
Power
- Input/Operating Voltage: 7 to 36 VDC
- Power modes: Dual 5G Peak 68W (5.7A @12V); Standby 55mW (4.5mA@12V)
- Built-in protection against voltage transients including 5 VDC engine cranking
- Ignition Sense with time delay shutdown
Dimensions
- Size: 220mm x 170mm x 53mm (6.69in x 8.66in x 2.08in)
- Weight 2.06 Kg (4.5 Lbs.)
Industry Certifications
- Safety: IECEE Certification Bodies Scheme (CB Scheme), UL 60950
- Vehicle Usage: E-Mark (72/245/EEC, 2009/19/EC), ISO7637- 2, SAE J1455 (Shock & Vibration)
- Environmental: RoHS2, REACH, WEEE Rail Usage: EN50155 (Rolling Stock)

XR90_DataSheet(10928).pdf

XR90_DataSheet(10929).pdf

Latest Blog Posts About This Product

How to Register for Sierra Wireless AirLink Management Service (ALMS)

Latest YouTube Videos About This Product

Popular Comparisons

Specifications:

Country of Origin	China
No. of Cellular Connectors	8
No. of WiFi Connectors	4
No. of GPS Connectors	1
Cellular Connector	FAKRA CODE D Violet Male
WiFi Connector	FAKRA CODE I Beige Male
GPS Connector	FAKRA CODE C Blue Male
No. of LAN Ports	5
No. of WAN Ports	0
No. of Fiber (SFP) Ports	0
No. of Serial Ports	1
No. of Embedded Modems	2
Ports Configurable as LAN/WAN	Yes
USB Port	LAN
WAN Throughput Speed	5 Gbps
SIM Card Size	2FF
eSIM Support	No
Length (in)	8.7
Width (in)	10.5
Height (in)	2.1
Weight (lb)	7.1
Minimum Temperature (F)	-22
Maximum Temperature (F)	158
Antennas Included	No
Modem Expansion Slot	No
Modem Replaceable	Yes
FIPS Certified	Yes
WiFi Support	WiFi 6
Cloud Management Included	Yes
Power Input	7 to 36 VDC
Bluetooth	Yes
Bonding Support	No
IP Passthrough	Yes
