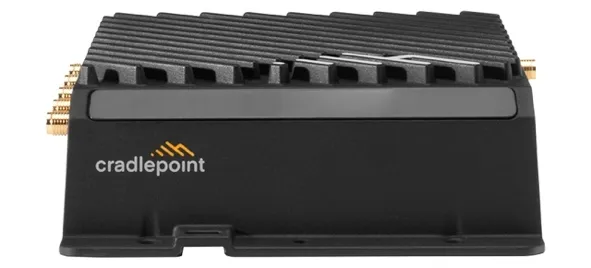

R920 Series Ruggedized Router - 3 year Mobile Essentials WiFi Cat-7, no AC power supply or antennas, North America - MA03-0920-C7A-NA

R920 Series Ruggedized Router - 3 year Mobile Essentials WiFi Cat-7, no AC power supply or antennas, North America

Call for Availability

Item Number: 13240
Model: MA03-0920-C7A-NA
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,245.00

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Built for vehicle and IoT deployments

The R920 Series is a versatile LTE router with a wide span of use cases. It meets the needs of flexible connectivity and standardization by providing mass transit, public safety, and other organizations with support for a 5G modular modem, edge computing, Bluetooth, and CBRS for private networking.

High-Performance Vehicle Connectivity

The Cradlepoint R920 router with the NetCloud Mobile service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solutionCombined with the RX20 Managed Accessory, the R920 can be field upgraded to include a second LTE or 5G modem. When coupled with the Advanced Mobile service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality such as location tracking and cellular coverage maps. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.

Ruggedized IoT Solution

When combined with the NetCloud Ruggedized IoT service plan, the R920 provides a versatile, ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. It can be deployed in a wide range of environmentally harsh IoT use cases such as kiosks, building automation, oil and gas, utility, and smart city infrastructure deployments. The ruggedized design and the CBRS band support make it ideal for private networks. In addition, the solution is highly extensible with APIs, SDKs, and integrations into IoT platforms, and the generous memory supports onboard edge containers. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.

Benefits

  • Gain fast, reliable connectivity with Cat 7 LTE providing fast upload for video and data
  • Add a second LTE or 5G cellular modem for multi-link dependability
  • Deploy Wi-Fi 6 for the best possible connections
  • Prioritize access to public safety networks for reliable, secure connectivity
  • Enable unified edge security with application-aware multizone firewalls, IDS/IPS, and available FIPS 140-3 Level 1 Implementation Under Test
  • Extend your deployment and enable customized solutions with powerful edge compute capabilities, including containers, connectors, SDKs, and API support
  • Utilize the R920-C7A on private cellular networks with Band 48 CBRS

Standard orders include

  • [1] R920 Series Ruggedized Router
  • [1] 3-meter (2x2) Power and GPIO cable
  • [1] Small accessories kit
  • [4] M4 screws, nuts, and washers
  • [1] Mounting template
  • [1] Getting Started card
  • [1] Safety, Warranty, and Regulatory guide

MA03-0920-C7A-NA, R920 router with Wi-Fi, 3-year NetCloud Mobile Essentials plan, no AC power supply or antennas

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 2
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 1
No. of WAN Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port LAN/WAN
WAN Throughput Speed 940Mbps
SIM Card Size 4FF
Length (in) 5.26
Width (in) 4.78
Height (in) 1.61
Weight (lb) 1.3125
Minimum Temperature (F) -22
Maximum Temperature (F) 158
Material Ruggedized Metal
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified Yes
WiFi Support WiFi 6
Cloud Management Included Yes
Power Input 9–36 VDC 3 A fuse>24 VDC 2 A fuse
Bluetooth Yes
Bonding Support No
IP Passthrough Yes


There are currently no product reviews.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question

Sort By:

What dofes it take to make this cradle point support 5G?

You have to supply a compatible 5G modem connected to the R920 with captive modem mode configured. The W1850 is a compatible option.

W1850:
https://5gstore.com/product/11098_cradlepoint_w1850-5g-adapter.html

This Cradlepoint article provides more detail on the process:
https://customer.cradlepoint.com/s/article/Captive-Modem
