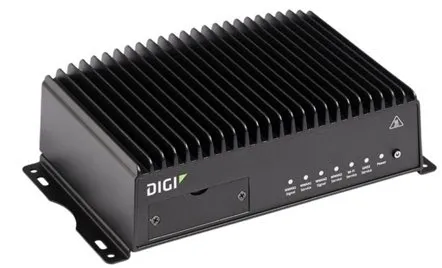

Digi TX54 - A146 Primary Responder - single LTE-Advanced Pro Cat 12, Wi-Fi, North America

Call for Availability

Item Number: 13243
Model: TX54-A146
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,489.00

Manage Your Network Your Way Remote device management: network-wide updates, data insights and control. Digi Remote Manager delivers centralized visibility and automates processes at your command, with actionable 24/7 remote monitoring.
Digi RM Subscriptions - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The versatility of Digi TX54 routers makes them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. Digi TX54 provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity.

Digi TX54 is available with dual Wi-Fi radios to segment passenger Wi-Fi from fare collection, data, video and other applications, and with models for single and dual LTE- Advanced, LTE-Advanced Pro and 5G. Digi TX54 also offers models with FirstNet TrustedTM and Verizon Frontline support for the critical demands of first responders and emergency communications.

Digi TX54 includes concurrent and independent dual cellular interfaces that prioritize critical communications. The industrial-grade design supports the most rugged conditions, including vibration and temperature changes. Support for Digi Containers and Python allows for flexible edge computing and intelligence.

Four Gigabit Ethernet ports connect other IP-capable systems, each configurable as an isolated secure LAN, or all four can function as a Layer 2 switch. Digi TrustFence®, a suite of hardware and firmware features, ensures the integrity of Digi TX54 security functions, and chip-level encryption protects the onboard file system. Digi Remote Manager® allows you to centrally configure, deploy and manage your network and connected devices.

Features and Benefits

  • 5G, LTE-A Pro and LTE-A single and dual cellular models
  • Primary responder models for critical communications
  • Capable of segmenting private and public data communication across dual cellular modules
  • High-speed Wi-Fi 5 (802.11ac) for WAN or LAN service and optional dual Wi-Fi radios
  • Cryptographic co-processor with secure key generation
  • Built-in Digi TrustFence for device security, secure encrypted connections, ongoing monitoring and support
  • Digi Remote Manager (optinal) platform for easy setup, mass configuration and management
  • Digi WAN Bonding for 5G/LTE WAN aggregation and immediate failover

What's in the box?

Digi TX54 - Single LTE-Advanced Pro Cat 12, Wi-Fi, North America

Digi TX54 Single LTE-Advanced Pro Cat 12, Wi-Fi, North America

Priority Responder

FirstNet Trusted™, Verizon Frontline

Cellular

Single LTE-Advanced Cat 12 with North America

4G LTE-Advanced bands:

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48 CBRS, B66

3G UMTS/HSPA+ bands

B1, B2, B4, B5, B8

Wi-Fi

Wi-Fi 5 (802.11ac) 2.4 GHz and 5 GHz, 2x2 MIMO

Bluetooth

Bluetooth 4.2

GNSS

GPS, Galileo, BeiDou and GLONASS with Untethered Dead Reckoning (UDR), multiple geofence support

Ethernet

(4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN

Serial

(1) RS-232; DB-9 male (DTE)

USB

(1) USB 3.0 Type A connector

Power connector

Screw down removable terminal block with ignition sense

PHYSICAL

DIMENSIONS (L X W X H)

146 x 210 x 63.5 mm (5.75 x 8.25 x 2.5 in)

WEIGHT

1.5 kg (3.3 lbs)

STATUS LEDS

Power, WWAN signal and service (per module), Wi-Fi service (per module), GNSS, Ethernet (link, activity)

ENCLOSURE

Aluminium, IP54




Specifications:

No. of Cellular Connectors 2
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 4
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port LAN
WAN Throughput Speed 1Gbps
SIM Card Size 2FF
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified Yes
WiFi Support WiFi 5
Cloud Management Included No
Power Input 9 – 36 VDC, ignition sense
Bluetooth Yes
Bonding Support Yes
IP Passthrough Yes
