Semtech XR60, Global modem with Dual Ethernet and Wi-Fi - 1105159
  • Semtech XR60, Global modem with Dual Ethernet and Wi-Fi - AirLink XR60 Details

XR60 5G Router Global with Dual Ethernet, Wi-Fi, and 5-year AirLink Complete Subscription - DC Single 5G with Wi-Fi

17 Support Docs
Call for Availability
Item Number: 14614
Model: 1105159
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,529.00

Antennas are NOT included - four antennas are required for the embedded cellular modem. Two antennas are needed for the WiFi access. A GPS antenna is also needed if you intend on using this feature.
Select Cellular Antennas (required) - compare - details
This device only includes the hardwire DC power supply. If you need an AC power supply, you can add one here.
Add an AC Adapter (optional) - details
Bundle & Save Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

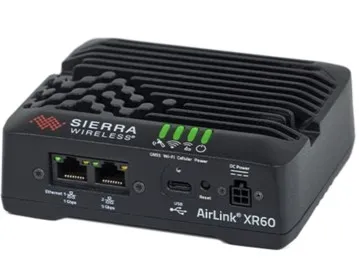

AirLink XR60: World’s Smallest Rugged 5G Router

The ultra-compact and highly ruggedized AirLink® XR60 delivers high performance 5G and Wi-Fi 6 connectivity to space-limited and harsh environments — from tight industrial enclosures to fast-moving vehicles.

With advanced networking capabilities, private network support and edge computing capabilities, the XR60 future proofs your connectivity and accelerates your digital transformation.

  • 5G
  • 2×2 MIMO Wi-Fi 6

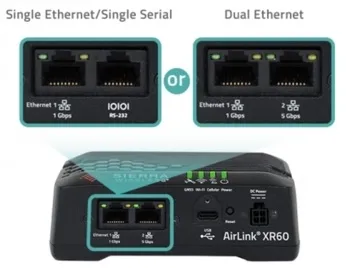

  • Dual Ethernet (1 Gbps + 5 Gbps)
  • Dual-Band GNSS
  • IP64 Rated
  • AirLink OS with AirLink Complete

The XR60 5G router now comes with 5 years of AirLink Complete.

Upon registering the XR60 router in ALMS, you’ll automatically gain access to 5 years of AirLink Complete with no annual fee and no renewal process to manage for the next 5 years!

1105159(14614).pdf
1105161(14616).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

Specifications:

Country of Origin Viet Nam
No. of Cellular Connectors 4
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 1
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 1
Ports Configurable as LAN/WAN No
USB Port LAN
WAN Throughput Speed 800 Mbps
SIM Card Size 4FF
eSIM Support No
Length (in) 4.2
Width (in) 4.6
Height (in) 1.5
Weight (lb) 1.15
Minimum Temperature (F) -40
Maximum Temperature (F) 158
Material Sealed Aluminum Housing (IP64 Rated)
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified Yes
WiFi Support WiFi 6
Cloud Management Included Yes
Power Input DC Power Cable
Bluetooth No
Bonding Support No
IP Passthrough Yes
