Wilson 800MHz Band 6dB Tap with 1.5dB Passthru (2-Way Unequal Splitter) - 859906 - DISCONTINUED

Call for Availability

Item Number: 3829
Model: 859906
Quantity:

Price:

$89.99


DISCONTINUED ITEM - SCROLL DOWN FOR REPLACEMENT ITEMS
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

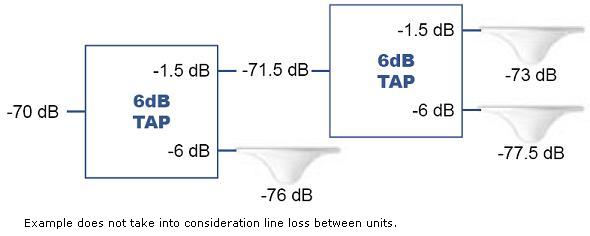

For use in signal distribution systems to split the amplified signal to up to 20 inside antennas with minimal signal loss. Features low-loss signal throughput with one -6dB tap. Weatherproof case for indoor or outdoor use.

Our standard units are offered with N/Female connectors and are capable of handling 10W of power into a matched load. These units are ideal for in-building applications that require the combining or dividing of RF to accommodate multiple antenna locations.



Connecting splitter to amplifier: Typically the splitter is connected to the amplifier using the 2' LMR-400 coax extension but any length of LMR-400 cable may be used.

Connecting antennas to the splitter:

Specifications:

  • Signal Reduction:
    • Main Line: 1.5dB
    • Tap: 6dB
  • Frequency Band: 800MHz Band
  • Connectors: N/Female
