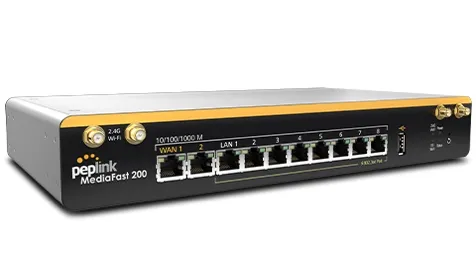

Pepwave Balance with MediaFast 200 Caching Router with 120 GB SSD

Call for Availability

Item Number: 5136
Model: MFA-200-W

Contact Us For Pricing

Peplink provides a one-year standard warranty at no additional charge. This warranty period can be extended for an additional 1 or 2 years if desired.

There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
Extended Warranty (optional): - details
SmartCare is an additional support option that can be added for one or three years.

The 1-year or 3-year SmartCare packages include:
  • Standard Warranty for 1 or 3 years
  • Free Firmware Upgrades for 1 or 3 years
  • Advance Hardware Replacement for RMA for 1 or 3 years (i.e. if your device needs to be replaced, Pepwave will ship you a replacement without having to receive the defective unit first)
There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
SmartCare Support (optional): - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

This is the UPDATED MediaFast 200 with improved throughput (200mbps vs 150mbps)

This Pepwave Balance Caching Router lets small businesses and educational institutions play media whenever they need to. MediaFast technology downloads and buffers audio and video from a variety of sources at a throughput of up to 200 Mbps for uninterrupted future use. Content is stored on the integrated 120GB SSD hard drive and can be set to automatically delete and free up space for future files. The router can also do scheduled content downloads during off-peak hours to reduce overall connectivity costs, and has built-in app control so you can manage devices.

As an entry-level enterprise router, the Pepwave Balance MediaFast 200 has many of the features of other Pepwave networking devices. Designed for using a single internet connection, this router offers bandwidth reporting, client IP monitoring, a stateful firewall and an obstructed Wi-Fi range of up to 500 feet. An optional add-on will activate the second Wired WAN port while enabling Pepwave’s SpeedFusion VPN Bonding, load balancing and failover. The 5Gstore experts will help you set up and configure your MediaFast network router with a year of free technical support and 24/7 access to our support portal.

5Gstore is a Peplink Certified PartnerRouter Features:

  • Internet Connections Supported: 2 Wired WAN, 1 USB (view full compatibility chart), WiFi as WAN*
  • WiFi Standard: 802.11 B, G, N
  • WiFi Range: 400-500' through walls, much greater unobstructed (variable depending on interference from other electronics and physical interference such as walls and ceilings)
  • Ethernet ports: 8 GbE LAN + 2* GbE WAN (Only WAN 1 is activated. With purchase of optional Load Balancing or SpeedFusion Bonding license key, you can activate WAN 2)
  • Size: 11.5" x 6.9" x 1.9"
  • Bonding: SpeedFusion Bonding available as a paid upgrade
*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss. Also note that certain features available for other WAN connections may not be available via WAW, such as MAC Address Clone or IP Passthrough - refer to the full product manual if you plan to use WAW for more advanced routing.

Specifications:

No. of Cellular Connectors 0
No. of WiFi Connectors 4
No. of GPS Connectors 0
WiFi Connector RP-SMA Female
No. of LAN Ports 8
No. of WAN Ports 2
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 0
Ports Configurable as LAN/WAN No
USB Port WAN
WAN Throughput Speed 80 Mbps
Length (in) 6.9
Width (in) 11.5
Height (in) 1.9
Minimum Temperature (F) -40
Maximum Temperature (F) 149
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
Cloud Management Included Yes
Bluetooth No
Bonding Support Yes
IP Passthrough No
