Cradlepoint NetCloud Essentials for IoT with IBR600C Cat 4 LTE Router - 3 Years


5 Customer Reviews 1 Questions 71 Support Docs
In Stock
Item Number: 9655
Model: TB3-600C150M-NNN
Quantity:

Price:

$580.00

NetCloud Essentials for IoT Routers includes NetCloud Manager Standard. Upgrading to the Advanced package adds the NetCloud Manager Prime features, including advanced routing protocols, security, and analytics combined with location-based insights and cloud secure Out-of-Band Management for more powerful network management.
Upgrade to NetCloud Advanced - details
Related Products
Cradlepoint NetCloud Essentials for IoT - IBR600C Cat 4 - 5 Yr
$649.00
IBR650C NetCloud Essentials with Cat 4 LTE
$799.99
CradlePoint NetCloud Solution for IoT with IBR200 Gateway
$299.99

*TOP 10 Product of 2022*

The IBR600C Essentials Solutions package includes the IBR600C-150M router and support for 3 years:

  • NetCloud Software (NetCloud Manager Standard, NetCloud OS, NetCloud Perimeter)
  • 24x7 Cradlepoint Support
  • Limited Lifetime Warranty

5GStore has semi-rugged compact routers with embedded modems available to help improve your M2M and in-vehicle applications and connectivity. This NetCloud Essentials package for IoT includes a Cradlepoint COR IBR600C Cat 4 LTE Router along with three years of NetCloud software (NetCloud Manager Standard, NetCloud OS and NetCloud Perimeter). You’ll also enjoy 24/7 Cradlepoint Support and a limited lifetime warranty with this Essentials package from 5GStore. Cradlepoint is known for its industry-leading LTE connectivity that fosters business intelligence and remote cloud management for ease and simplicity of use. Featuring a 75 Mbps firewall throughput, a five VPN tunnel count and real-time troubleshooting tools, you’ll enjoy solid and secure work-from-anywhere connectivity and safety.

Features:

  • Three Year NetCloud Essentials for IoT with Cradlepoint IBR600C Router
  • Internet connections include one (1) embedded Cat 4 LTE (a second MC400 can be added via the Extensibility Dock), 2 Wired WAN, 1 USB, WiFi as WAN* (more info)
  • Networks Supported for Embedded Modem: LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 66 – AWS 3 (1700/2100 MHz), Band 71 (600 MHz); WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
  • Wi-Fi Standard: 802.11 b/g/n
  • Ethernet ports include two (2) configurable WAN/LAN (1 x 10/100, 1 x 10/100/1000)
  • IBR600C router size is 4.6” × 4.5” × 1.2"

*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss.

ibr600c-data-sheet(7458).pdf
ibr600c-soho-product-brief(7458).pdf



Features:

  • Embedded 150/50 Mbps Category 4 modem
  • Multi-carrier software-define radio
  • Fully supported in Cradlepoint NetCloud: cloud management, cloud networking
  • Semi-ruggedized for industrial and in-vehicle applications
  • Extensibility
    • Supports Router SDK and ECM API
    • COR Extensibility Dock
    • Dual-modem support with MC400
    • 2 extra 10/100 Ethernet ports
    • 2×10 connector for extra GPIOs
    • 5 V DC 50 mA sensor power
    • Redundant power supply capable
  • Sleep Mode / Ignition Sensing

Technical Specifications

  • WAN
    • Dual-modem capable with optional COR Extensibility Dock
    • 150M: 150/50 Mbps DL/UL FDD LTE w/HSPA+ fallback
    • WiFi as WAN, with WPA2 Enterprise Authentication for WiFi as WAN
    • Failover/Failback
    • Load Balancing
    • Advanced Modem Failure Check
    • WAN Port Speed Control
    • WAN/LAN Affinity
    • IP Passthrough
    • Standby
  • LAN
    • VLAN 802.1Q
    • DHCP Server, Client, Relay
    • DNS and DNS Proxy
    • DynDNS
    • UPnP
    • DMZ
    • Multicast/Multicast Proxy
    • QoS (DSCP and Priority Queuing)
    • MAC Address Filtering
  • WiFi
    • 802.11 b/g/n
    • Up to 64 connected devices
    • Multiple SSIDs
    • WPA2 Enterprise (WiFi)
    • Hotspot/Captive Portal
    • SSID-based Priority
    • Client Mode for faster data offload
  • Management
    • Cradlepoint Enterprise Cloud Manager
    • Web UI, API, CLI
    • Data Usage Alerts (router and per client)
    • Advanced Troubleshooting (support)
    • Device Alerts
    • SNMP
    • SMS control
    • Serial Redirector
    • Auto APN recovery
    • Syslog
  • VPN and Routing
    • IPsec Tunnel – up to five concurrent sessions
    • L2TP
    • GRE Tunnel
    • OSPF/BGP/RIP
    • Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP)
    • Per-Interface Routing
    • Routing Rules
    • Policy-based Routing
    • NAT-less Routing
    • Virtual Server/Port Forwarding
    • NEMO/DMNR
    • IPv6
    • VRRP
    • STP
    • NHRP
    • VTI Tunnel support
    • OpenVPN support
    • CP Secure VPN compatible
    • Serial PAD Mode
  • Security
    • RADIUS and TACACS+ support*
      • *Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
    • 802.1x authentication for Ethernet
    • Zsacler integration
    • Certificate support
    • ALGs
    • MAC Address Filtering
    • Advanced Security Mode (local user management only)
    • Per-Client Web Filtering
    • IP Filtering
    • Content Filtering (basic)
    • Website Filtering
    • Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address

Specifications:

  • WAN
    • Dual-modem capable with optional Dual-Modem Dock
    • Integrated LPE Category 4 LTE modem
    • Two LAN/WAN switchable Ethernet ports (one 10/100/1000 and one 10/100) - one default WAN (cable/DSL/T1/satellite/Metro Ethernet)
    • WiFi as WAN, Metro WiFi; 2×2 MIMO "N" 2.4 GHz; 802.11 b/g/n
  • LAN
    • 2×2 MIMO "N" 2.4 GHz WiFi; 802.11 b/g/n
    • Two LAN/WAN switchable Ethernet ports (one 10/100/1000 and one 10/100) - one default LAN

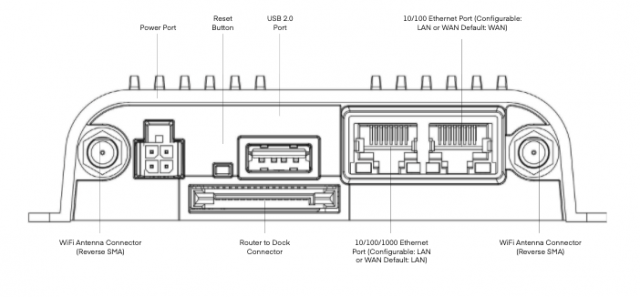

  • PORTS
    • Power
    • 2-wire GPIO
    • Add more GPIO ports with optional 9-wire GPIO cable or COR Extensibility Dock
    • USB 2.0
    • Two Ethernet LAN/WAN
    • Two cellular antenna connectors (SMA)
    • Two WiFi antenna connectors (R-SMA)
    • 15-pin dock port for COR Extensibility Dock or 9-wire GPIO cable
  • TEMPERATURE
    • -20 °C to 60 °C (-4 °F to 140 °F) operating
  • HUMIDITY (NON-CONDENSING)
    • 5% to 95% operating
    • 5% to 95% storage
  • POWER
    • DC input steady state voltage range: 9-33 VDC (requires inline fuse for vehicle installations)
      • For 9–24 VDC installations, use a 3 A fuse
      • For > 24 VDC installations, use a 2.5 A fuse
    • Reverse polarity and transient voltage protection per ISO 7637-2
    • Ignition sensing (automatic ON and time-delay OFF)
    • Power consumption:
      • Idle: 4 W
      • WiFi Tx/Rx: 9 W
      • LTE Tx/Rx: 6.25 W
      • 12 VDC / 2 A adapter recommended
  • WIFI POWER
    • 2.4 GHz: 18 dBm conducted
  • SIZE
    • 4.6 x 4.5 x 1.2 in (118 x 113.5 x 29.3 mm)
  • WEIGHT
    • 14 oz (400 g)
  • CERTIFICATIONS
    • FCC, IC
    • WiFi Alliance* - 802.11 b/g/n certified
    • Safety: UL/CUL, CB Scheme, EN60950-1
    • Safety: UL/CUL, CB Scheme, EN60950-1
    • Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455
    • Materials: WEEE, RoHS, RoHS-2, California Prop 65
    • Telecom: PTCRB/CTIA
  • MODEM SPECIFICATIONS
    • Technology: LTE Cat 4 (3GPP Rel 11), DC-HSPA+
    • Downlink Rates: LTE 150 Mbps, HSPA+ 42.2 Mbps* (theoretical)
    • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps* (theoretical)
    • Frequency Bands:
      • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 66 – AWS 3 (1700/2100 MHz), Band 71 (600 MHz)
      • WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
    • Power: LTE 23 dBm ± 1; HSPA+ 23 dBm ± 1; (typical conducted)
    • Antennas: two SMA male (plug), maximum torque spec is 4 in-lbs
    • GPS/GNSS: passive, dedicated SMA port (multi-constellation - GPS, GLONASS)
    • Industry Standards & Certs: FCC, IC, PTCRB, WiFi Alliance (IBR600C only), AT&T, FirstNet Ready, Verizon, Verizon NEMO/DMNR for Primary Wireless Access
    • SIM: two 2FF slots

What's in the box:

  • Ruggedized router with integrated enterprise-class LTE modem; includes integrated mounting plate
  • External LTE antennas (2 SMA)
  • WiFi antennas (2) (reverse SMA, IBR600C only) < 5 dBi gain
  • 12 V / 2 A power supply w/ locking connector; DC GPIO/power cable available
  • Quick Start Guide with warranty information
  • Extra SIM door screws (2)
