Pepwave MAX HD2 MBX Load Balancing/Bonding Router with 2 x Cat 18 LTE Advanced Pro Modems

With its ability to utilize wired and wireless connections from multiple providers, the Pepwave HD2 router allows users to choose the services that are best for the areas they spend the most time in. Intelligent failover will automatically switch between various SIM cards, DSL, public wireless and other broadband options based on what is available. This is especially useful if cellular providers have limited coverage areas or if you travel frequently. The router can also combine connections for faster speeds using priority-based load balancing or Pepwave’s unbreakable SpeedFusion VPN Bonding. Manage those connections or add new ones from any internet-capable device using the cloud-based InControl2 management system.

The Max HD2 is made for staying connected. Employees and nearby users can experience the same secure networking experience by connecting their devices using the Wi-Fi access point or four-port Ethernet switch. Once you have set up your connections and security policies, the router will automatically manage them without the need for additional software or technicians. And, its tough construction meets international standards for shock/vibration resistance and electromagnetic compatibility, meaning it can be used in anything from ATMs to airplanes. Every Pepwave load balancing/bonding router purchase includes a year of expert technical support and documentation to help your company get the most out of its mobile network.

Router Features:

• Internet Connections Supported: 2 x embedded Cat 18 LTE Advanced Pro, 3 Wired WAN, 1 USB (view full compatibility chart), WiFi as WAN*

• Networks Supported for Embedded Modems: 4G LTE: B1, B3, B25(B2), B66(B4), B26(B5/B18/B19), B7, B8, B12(17), B13, B14 , B20, B28, B29, B30, B32; 3G: B1, B2, B4, B5(B19), B8; Firstnet
  B71, B38, B39, B40, B41, B42, B43, B46, B48
  • Firstnet certification pending
• WiFi Standard: Dual-band 802.11ac
• WiFi Range: 400-500' through walls, much greater unobstructed (variable depending on interference from other electronics and physical interference such as walls and ceilings)

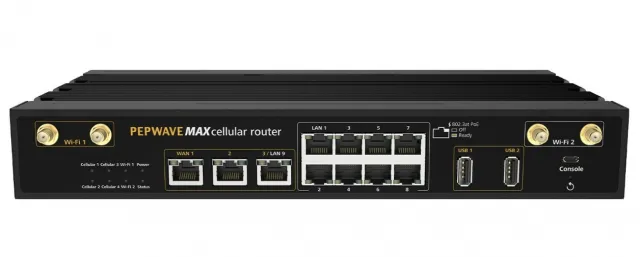

• Ethernet ports: 9 GbE LAN + 3 WAN (1 x LAN can be configured as a third WAN if desired)
• Size: 1.56" x 10.24" x 5.66"
• Bonding: SpeedFusion VPN Bonding. NOTE: Many factors influence the real-world throughput you'll see from bonded connections, including latency, connection type, connection speeds, traffic type, and reliability on both sides of the SpeedFusion tunnel. Cellular users should note that bonded cellular connections suffer from "flow control" of TCP traffic at the carrier level, and 5Gstore cannot guarantee that bonding multiple cellular connections will result in faster speeds (however, the other benefits of SpeedFusion remain, such as unbreakable VPN, session persistence, and 100% up-time as long as you have 1 healthy WAN).
