MA233 with 1 5G/LTE, 1 Wi-Fi, 1 GPS and 3 meter cables indesigned to be mounted on metal - MA233.LBC.001

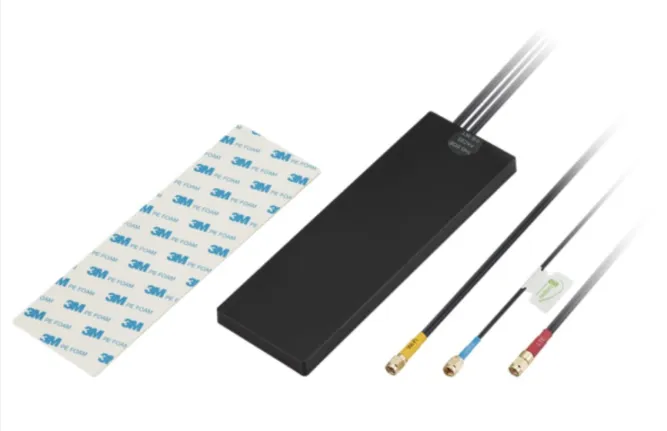

  • MA233 with 1 5G/LTE, 1 Wi-Fi, 1 GPS and 3 meter cables indesigned to be mounted on metal - Contents

MA233 with 1 5G/LTE, 1 Wi-Fi, 1 GPS and 3 meter cables indesigned to be mounted on metal

Call for Availability
Item Number: 20033
Model: MA233.LBC.001
Quantity:

Price:

$147.37

Sale Price:

$110.53

You Save:

$36.84

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

3in1 Stream Adhesive Antenna Designed for use on Metal

The Stream 3in1 MA233 is an adhesive mount antenna specifically designed for use on metal surfaces. With GPS-GLONASS-Galileo, LTE and Dual Band Wi-Fi, the Stream is a low profile, heavy-duty, fully IP67 rated external M2M antenna for use by RF professionals in
telematics, transportation and remote monitoring applications.

The Stream 3in1 is unique in the market as it combines the highest possible efficiency and peak gain for GPS-GLONASS-Galileo, Wi-Fi dual-band and all cellular bands in 4G/3G/2G in a low profile compact format. It is mounted via high quality, first tier automotive approved, 3M adhesive foam. The patent pending design incorporates a custom Taoglas 35mm GPS-GLONASS-GALILEO patch antenna on an extended integral ground-plane. A front-end SAW filter dramatically reduces radiated spurious emissions.

The extended ground-plane used with an innovative internal LTE PIFA also enables wide frequency bandwith to cover LTE with fallback to 3G/2G in order to deliver the highest performance possible at 3 meters cable lengths. High antenna efficiencies are absolutely critical in today’s systems in able to achieve targeted dataspeeds and coverage. A powerful Wi-Fi dual-band antenna covering 2.4 & 5.8GHz gives maximum gain and coverage for common applications.

Technical Specification

Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 700 - 2500MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 2.54
Length (mm) 203
Width (mm) 69
Height (mm) 13
Weight (g) 180


Specifications:

No. of Cellular Connectors 1
No. of WiFi Connectors 1
No. of GPS Connectors 1
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Directional
Antenna Mount Velcro/Adhesive
Antenna Color Black
Length (in) 8
Width (in) 2.8
Height (in) 0.5
Weight (lb) 0.4
Maximum Gain 2.54
Impedance Ω (Input/Output) 50
Cable Length (in) 118
Cable Type TGC-200 (cell and WiFi) and RG-174 (GNSS)
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material PC + ABS
VSWR (Voltage Standing Wave Radio) 0
