Sierra Wireless AirLink RV55 Router with Cat 12 LTE Advanced Pro Modem + WiFi

In Stock

Item Number: 8787
Model: 1104302
Quantity:
Have a large deployment?
Request a Quote

Price:

$949.00

The RV55 does not include antennas. Two cellular antennas are required to use the embedded modem, and two WiFi antennas are required to use the wireless access point. A GPS antenna is only required if you plan to use the active GPS feature.
Select Antennas (required) - details
This device only includes the hardwire DC power supply. If you need an AC or vehicle power supply, you can add one here.
Add a Power Adapter (optional) - details
The MP, RV, and GX series routers include Airlink Complete for 1 year. Airlink Complete includes:
  • Airlink Support, including direct access to dedicated Sierra Wireless technical support
  • AirLink Management Service (ALMS)
  • 3 year hardware warranty
Airlink Complete can be extended for up to 5 years at the time of purchase, or it can be renewed annually in the future if desired.
Extend Airlink Complete (optional) - details

Frequently Purchased Together »

Sierra Wireless AirLink RV55 - Cat 12 LTE Advanced Pro + WiFi
Sierra Wireless AirLink RV55 Router with Cat 12 LTE Advanced Pro Modem + WiFi
+ 5Gstore 2-Outlet IP Switch for Remote Automation - App Controlled
5Gstore 2-Outlet IP Switch for Remote Automation - App Controlled
$104.99 $89.99
= $1,038.99
Add to Cart
Monitor and reboot your router remotely!

Sierra Wireless AirLink RV55 - Cat 12 LTE Advanced Pro + WiFi
Sierra Wireless AirLink RV55 Router with Cat 12 LTE Advanced Pro Modem + WiFi
+ AC Power Supply for Sierra ES/GX/LS/MP/RV/RX and CloudGate
AC Power Supply for Sierra ES/GX/LS/MP/RV/RX and CloudGate
= $973.00
Add to Cart
Only the hardwire power harness is included!


Connect critical remote assets, vehicle fleets and infrastructure with the rugged Sierra Wireless AirLink Router with a Cat 12 modem. This LTE-A Pro plus Wi-Fi router is a rugged, compact solution that is both easy to install and easy to manage. The Sierra Wireless RV55 is especially suited for real-time remote connectivity for SCADA, distribution management systems, metering as well as utilities, smart city and public safety uses. Hard to reach conditions? This high-performance RV55 features an LTE-M/NB-IoT variant that is perfectly suited for hard-to-reach conditions that are especially challenging.

You’ll enjoy centrally managed, secure LTE broadband connectivity for both remote fixed and vehicle applications in harsh environments. You’ll also appreciate the ultra-low power consumption and the reduced complexity of legacy equipment connection with dual serial, Ethernet and multi-protocol support. You can be confident in the proven reliability that Sierra Wireless has provided; millions of customers worldwide count on AirLink routers to keep their critical operations and infrastructure well-connected, in touch and on the cutting edge of communication capabilities.

Features:

  • WAN: One (1) Embedded LTE Advanced Pro modem; Wi-Fi as WAN
  • Networks Supported for Embedded Modem: LTE: 2100(B1), 1900(B2),1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 700(B14), 850(B18), 850(B19), 800(B20), 850(B26), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66); HSPA/HSPA+: 2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
  • Wi-Fi Standard: 802.11 b/g/n/ac, dual-band 2.4GHz/5.0GHz
  • One (1) GbE LAN port; one 1 RS-232 serial (supports dual serial connections with optional Y cable)
  • Hardwire DC power supply included; AC power supply and cigarette lighter power supply are available separately
  • RV55 measurements are 4.69" x 1.34" x 3.35"



Benefits:

  • Centrally managed, secure LTE broadband connectivity for both remote fixed or vehicle applications in harsh environments
  • Ultra-Low Power consumption, ideal for solar or battery powered installations.
  • Connect your field workers and devices with flexible dual Wi-Fi, and ethernet
  • Reduces complexity in connecting legacy equipment with dual-serial, ethernet, and multi-protocol support
  • Powerful remote cloud-based or on-premises management solutions
  • Proven reliability and over 3 million AirLink routers and gateways deployed
  • Peace of mind - included 3-year warranty, direct 24/7 support, and device management access

Specs:

  • Cellular WAN
    • LTE Category: Cat 12
    • Peak Download: Up to 600 Mbps DL
    • Peak Upload: Up to 150 Mbps UL
    • Supported Frequency Bands
      • LTE: 2100(B1), 1900(B2),1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 700(B14), 850(B18), 850(B19), 800(B20), 850(B26), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)
      • 3G HSPA/HSPA+: 2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
    • Approvals:
      • Regulatory: FCC, IC, PTCRB
      • Carrier: Verizon, AT&T

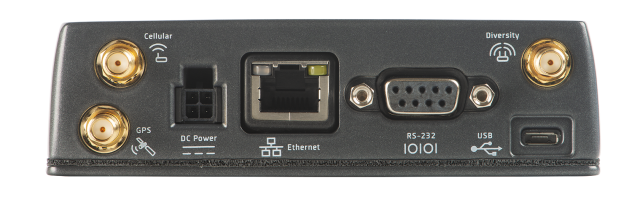

  • Host Interfaces
    • 10/100/1000 Ethernet (RJ45)
    • RS-232 Serial Port on DB-9 Connector
    • USB 2.0 Micro-B Connector
    • 3 SMA antenna connectors (Primary, Secondary/Diversity, GPS)
    • 2 RP-SMA antenna (1x1 Wi-Fi, Optional)
    • Active GPS antenna support
  • WiFi
    • Dual Band 2.4/5GHz Wi-Fi
    • Dual Radio, 802.11 b/g/n/ac (Wave2 Client Mode) Support for 10 clients, WPA2 Enterprise per radio
    • Output power 16dBm
    • Configurable as Dual Band Access Point (AP) or AP+Client Mode
    • Single SSID Support per radio
    • Captive Portal
  • Input/Output
    • Configurable I/O pin on power connector
      • Digital Input ON Voltage: 2.7 to 36 VDC
      • Configurable Pull-up for dry contact input
      • Digital Open Collector Output > sinking 500 mA
      • Analog Input: 0.5-36 VDC
  • LAN (Ethernet/USB)
    • DNS, DNS Proxy
    • DHCP Server
    • IP Passthrough
    • VLAN
    • Host Interface Watchdog
    • PPPoE
  • Serial
    • TCP/UDP PAD Mode
    • Modbus (ASCII, RTU, Variable)
    • PPP
    • DNP3 Interoperability
    • Dual Serial option (with optional Y cable)
  • Network and Routing
    • Network Address Translation (NAT)
    • Port Forwarding
    • Host Port Routing
    • NEMO/DMNR
    • VRRP
    • Reliable Static Route
    • Dynamic DNS
    • Verizon PNTM
    • IPV6 Gateway
  • Satellite Navigation (GNSS)
    • 30 Channel GPS and GLONASS Receiver
    • Acquisition Time: 1s Hot Start
    • Accuracy:
    • Tracking Sensitivity: -160dBm
    • Reports: NMEA 0183 V3.0, TAIP, RAP, XORA
    • Multiple Redundant Servers
    • Reliable Store and Forward
  • Security
    • Remote Authentication (LDAP, RADIUS and TACACS+)
    • DMZ
    • Inbound and Outbound Port filtering
    • Inbound and Outbound Trusted IP
    • MAC Address Filtering
    • PCI compatible
    • Secure Firmware Update
  • Network Management
    • Secure mobile network & asset management application available in the cloud or licensed platform in the enterprise data center
    • Fleet wide firmware upgrade delivery
    • Router configuration and template management
    • Router staging over the air and local Ethernet connection
    • Over-the-air software and radio module firmware updates
    • Device Configuration Templates
    • Configurable monitoring and alerting
    • Remote provisioning and airtime activation (where applicable)
  • Router Management
    • ALMS
    • Local web user interface
    • AT Command Line Interface (Telnet/SSH/Serial)
    • SMS Commands
    • SNMP
  • Events Engine
    • Custom event triggers and reports
    • Configurable interface, no programming
    • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
    • Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
    • Event Actions: Drive Relay Output
  • VPN
    • IPsec, GRE, and OpenVPN Client
    • Up to 5 concurrent tunnels
    • Split Tunnel
    • Dead Peer Detection (DPD)
    • FIPS 140-2 compatible
  • Application Framework
    • ALEOS Application Framework (AAF)
    • LUA Scripting Language
  • Power
    • Input Voltage: 7 to 36 VDC
    • LTE Idle Power: 900 mW (75 mA @ 12 VDC)
    • Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggeredon low voltage, I/O or periodic timer
    • Low voltage disconnect to prevent battery drain
    • Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
    • Ignition Sense with time delay shutdown
    • Configurable features and ports to optimize power consumption

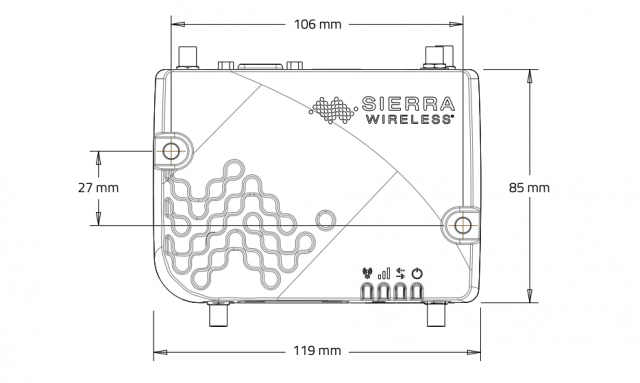

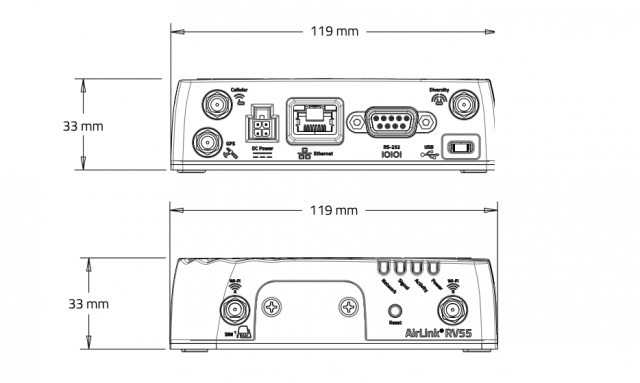

  • Dimensions
    • 119 mm x 33 mm x 85 mm (102 mm including wi-fi connectors)
    • 4.69 in x 1.34 in x 3.35 in (3.70 in including connectors)
    • 320g / 0.7lb
  • Environmental
    • Operating Temperature: -40°C to +70°C / -40°F to +158°F
    • Storage Temperature: -40°C to +85°C / -40°F to +185°F
    • Humidity: 90% RH @ 60°C
    • Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
    • IP64 rated ingress protection
  • Industry Certifications
    • Safety: IECEE Certification Bodies Scheme (CB Scheme) UL 60950
    • Vehicle Usage: E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock & Vibration)
    • Hazardous Environments: Class 1 Div 2
    • Environmental: RoHS, REACH, WEEE
  • Support and Warranty
    • Includes 1st Year AirLink Complete:
      • AirLink Management Service (ALMS)
      • Direct 24/7 Technical Support
      • 3-year standard warranty; optional 2-year warranty extension
  • Minimum Requirements
    • SIM card with active LTE mobile broadband plan from a compatible provider
    • Cellular antennas
    • 2mm Hex L-wrench (required to access the SIM card slot)
