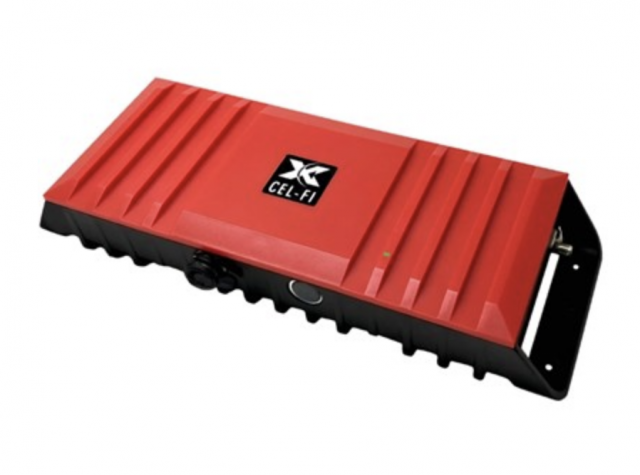

Cel-Fi GO Red Signal Booster for FirstNet

In Stock
Item Number: 8678

Contact Us For Pricing

Antennas are NOT included - you must select an exterior antenna here. If you already have a compatible antenna you plan to use (double check your connectors! The GO-X has SMA/Female connectors), you may select the "I don't need antennas" option at the bottom of the list.
Select Outside Antenna (required) - details
The panel and yagi antennas include brackets for wall mounting, but a pole mount is recommended for easier mounting and aiming. The marine antenna has standard threads for mounting to marine mounts.
Add Mount (optional) - details
The panel and yagi antennas will need a cable to connect to the amplifier. The marine antenna has a 20' cable attached, but an extension can be added if needed. If you already have a compatible cable you plan to use (double check your connectors! The Go-X has SMA/Female connectors), you may select the "I already have a cable" option at the bottom of the list.
Select Cable for External Antenna (required for panel/yagi) - details
Antennas are NOT included - you must select an inside antenna here to rebroadcast the boosted signal. The panel and dome antennas require cabling and need to be installed on a wall or ceiling. The whip antenna screws directly onto the amplifier and requires no installation (but provides less coverage). If you already have a compatible antenna you plan to use (double check your connectors! The GO-X has SMA/Female connectors), you may select the "I don't need antennas" option at the bottom of the list.
Select Inside Antenna (required) - details
If you are using the panel or dome antenna, you will need a cable to connect the inside antenna to the amplifier. If you selected the whip antenna OR if you already have a compatible cable you plan to use (double check your connectors! The Go-X has SMA/Female connectors), you may select the "I already have a cable" option at the bottom of the list.
Select Cable for Inside Antenna (required for panel/dome) - details
Related Products
Cel-Fi QUATRA In-Building Enterprise Cellular System

Cel-Fi GO G32 Smart Signal Booster Kit for Vehicles (AT&T, T-Mobile, or Verizon)
$620.99

Features:

  • Coverage area*: up to 12,500 square feet
  • All-in-One Kit? NO - external and internal antennas are required, along with cabling to connect to the amplifier (see above)
  • Compatibility: FirstNet Band 12/14 only

Cel‐Fi GO Red uses Nextivity’s award-winning, network-safe Cel-Fi Smart Signal Booster technology to dramatically improve coverage for FirstNet. It is designed to improve indoor and outdoor cellular coverage when one bar is available outdoors, by allowing an antenna to be used to improve indoor cellular performance. Cel-Fi GO Red is cost efficient and easy‐to‐deploy by an installer, and can be easily optimized and monitored by the Cel-Fi WAVE platform.

Key Features:

  • Band 12/14
  • Superior Performance: 100dB Max Gain
  • Multi-User Mobile Coverage
  • Indoor / Outdoor NEMA 4 Rated
  • Network Safe
  • Cel-Fi WAVE management platform

*Many factors will influence the actual coverage area you will see from a repeater, including layout/floorplan, construction, and original un-amplified signal strength. Depending on your situation, you may see more or less coverage than the estimates listed here. It is not possible to guarantee coverage area.




Installation notes:

  • In order for your system to function properly, you must maintain adequate separation between the outside and inside antennas (if the antennas are too close together, there will be oscillation/feedback between the antennas and the amplifier will power down). This amplifier requires approximately 100' of separation between the outside and inside antennas. Separation can be horizontal or vertical.
  • If you cannot achieve adequate separation to eliminate oscillation, the gain on the amplifier will automatically adjust, but that will result in a smaller coverage area from the amplifier.
  • Make sure the inside antenna is aimed AWAY from the outside antenna if possible.

Features & Benefits:

  • Band 12/14 FirstNet support
  • Supports two (2) bands simultaneously from a single operator
  • Up to 100dB system gain, per band
  • Peaceful coexistence with adjacent Wi-Fi (2.4 GHz & 5 GHz), femtocells, and cellular devices
  • Advanced digital echo-cancellation (>30dB) and channel select filtering algorithms
  • Automatic Gain Control (AGC) based on fast real-time echo-cancellation
  • NEMA 4 rated enclosure and connectors
  • Glanceable LED User Interface (UI)
  • Supporting smart phone application (WAVE)
  • Convection cooled cast aluminum chassis
  • Easy mounting capability (mounting screws and anchors included)
  • Systems are pre-configured for a single carrier (network operator)
  • Works with any user equipment (UE) on the configured network (no whitelist/blacklist)
  • System intelligence accurately establishes proper safe uplink power in real time
  • Uplink Muting Mode automatically shuts down uplink cellular transmissions when no active user equipment is detected
  • System shuts down upon Operator’s network command or failure detection
  • Nextivity purpose-built, high-performance, six core ASIC processor, provides best performance at lowest cost

Package Includes:

  • Amplifier
  • Power supply
  • Mounting screws and anchors

Additional equipment required (not included):

  • External (donor) antenna
  • Internal (server) antenna
  • Cables to connect antennas to amplifier (SMA Male connectors)

Specifications:

  • Compliance:
    • 3GPP TS 25.143 Rel.10
    • 3GPP TS 36.143 Rel.10
    • FCC Part 15, 20, 22, 24, 27
    • Bluetooth BQB
    • CE
  • System Management (Software):
    • Supported by WAVE cloud portal
    • WAVE Portal capability:
      • Status (List and Map)
      • Settings
      • Commissioning
      • Reporting
      • Diagnostics
      • Alarms & Notifications
      • Software Updates
  • Antenna Ports (donor & server):
    • 699 – 2180 Mhz
    • Impedance: 50 Ohm
    • Return Loss: 8 dB
    • Output Protection
    • SMA Female
  • Environmental:
    • Operating temperature: 0° to 65° C
    • Convection Cooling
    • Relative humidity: 0% to 95%, noncondensing
    • WEEE
    • NEMA 4
    • Surface Temp at any point (30° ambient): 53° C
  • Dimensions:
    • 1.71" x 3.8" x 10.73"  (43.5mm x 96.5mm x 272.5mm)
    • 1.87lb (850g)
  • Power:
    • 9.6 – 16.5V
    • 2A current draw
    • 16W nominal power consumption
  • Installation:
    • Mounting hardware included
  • DC Power Plug & Jack:
    • NEMA 4 rated power plugs and jack
  • Radio Performance:
    • The GO system can boost up to two (2) bands concurrently. Either profile can be selected:
      • A) One (1) High band boost and one (1) low band boost or
      • B) Two (2) high bands boost
  • Bands Supported:
    • Band 12
    • Band 14
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
